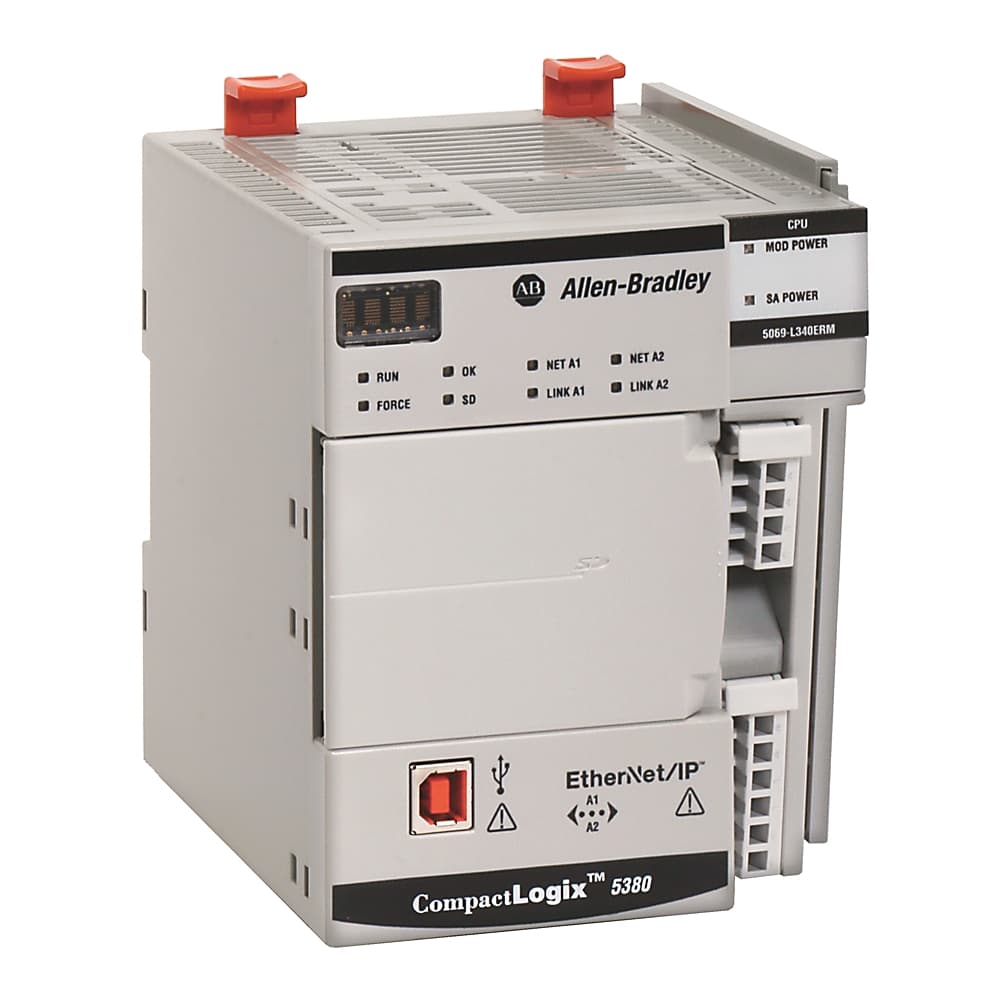

5069-L320ERM
Product ID:228192
Updated: 2026/4/3
Key Features
- 11. High-Speed I/O and Motion Control: The 5069-L320ERM supports high-speed I/O and integrated motion control up to 32 axes on EtherNet/IP, ensuring efficient and precise automation.;
- 22. Enhanced Diagnostics and Troubleshooting: Equipped with controller status and fault display, this controller provides enhanced diagnostics and troubleshooting capabilities for seamless system operation.;
- 33. Dual Configurable Ports: The controller includes dual configurable ports that support Dual-IP addresses, offering flexibility in network configurations.;
- 44. Enhanced Security Features: It offers enhanced security features including controller-based change detection, logging, encrypted firmware, and role-based access control to routines and Add-On Instructions.;
- 55. Wide Range of Memory Options: Available with a wide range of memory options from 0.6 to 10 MB, this controller can be tailored to meet the specific memory needs of various applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Dimension Unit | CM | Weight Unit | KG |
| Weight | 0.993 | Stock Status | STOCKED |
| Dimension Length | 30.48 | Dimension Width | 25.4 |
| Lead Time | 5 | Dimension Height | 20.32 |
| Quick Turnaround | false | Preferred Availability | true |
| Repairable | REPAIRABLE | Processor | Quad Core |
| Power Supply | MOD Power 18â¦32V DC SA Power 0â¦32V DC 0â¦240V AC, 47â¦63 Hz ATEX/IECEX, 125V AC max | Number Of Channels | 0 |
| Memory | 2MB | Isolation | 300V(cont);No isolation between ENET ports |
| Interface | 2 x 1 Gb EtherNet port | Height | 123mm, 4.84" |
| Depth | 136.81mm, 5.39" | Communication | EtherNet/IP, USB |
Specifications may be subject to change without notice
