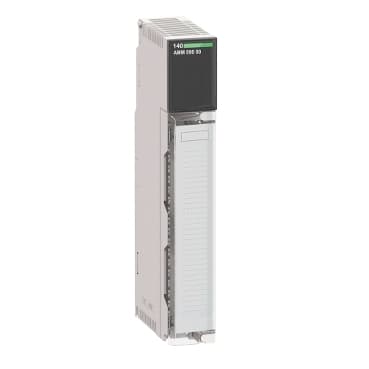

140AMM09000
Product ID:23752
Updated: 2026/4/3
Key Features
- 1Support various input types including unipolar voltage and current. 2、Ensure secure signal transmission with 500 V AC and 750 V DC isolation. 3、Monitor real-time bus status and diagnostics via local LED signaling. 4、Operate reliably in diverse environments from 32°F to 140°F. 5、Meet FM Class 1 Division 2 and UL 508 industrial safety standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Quantum automation platform | Product or Component Type | Input/output analog module |
| Type of filter | Single pole low pass - 3 dB at 21 Hz +/- 20 % input circuit | I/O modularity | 6 channels |
| Addressing requirement | 2 output words<br />5 input words | Analogue input number | 4 |
| Analogue input type | Bipolar current +/- 20 mA 15 bits DC<br />Bipolar voltage +/- 10 V 16 bits DC<br />Bipolar voltage +/- 5 V 15 bits DC<br />Unipolar current 0...20 mA 15 bits DC<br />Unipolar offset current 4...20 mA 14 bits DC<br />Unipolar offset voltage 1...5 V 14 bits DC<br />Unipolar voltage 0...10 V 16 bits DC<br />Unipolar voltage 0...5 V 15 bits DC | Absolute maximum input | +/- 25 mA current<br />+/- 50 V voltage |
| Input impedance | > 10 MOhm voltage<br />> 250 Ohm current | Offset | +/- 0.0014 % of full scale maximum/°C 0...60 °C input circuit |
| Gain shift | +/- 0.002 of full scale maximum 0...60 °C input circuit | Common mode rejection | > 80 dB 50/60 Hz input circuit |
| Analogue output number | 2 | Analogue output range | 4...20 mA |
| Analogue output resolution | 12 bits | Loop voltage | 0…60 V DC with external resistance output circuit<br />7…30 V DC output circuit |
| Maximum voltage drop | <30 V DC 20 mA | Setting time | 900 µs to +/- 0.1 % of the final value output circuit |
| External power requirement | 7...30 V output circuit | Absolute accuracy error | +/- 0.004 % of full scale 32…140 °F (0…60 °C) output circuit<br />+/- 0.007 %/°C of full scale maximum 32…140 °F (0…60 °C) output circuit<br />+/- 0.03 % 77 °F (25 °C) input circuit<br />+/- 0.05 % of full scale maximum 77 °F (25 °C) input circuit<br />+/- 0.20 % of full scale 77 °F (25 °C) output circuit |
| Linearity | 2.4 % over and under range voltage<br />2.4 % over range, and - 9.6 % under range current<br />Monotonic +/- 1 LSB input<br />Monotonic +/- 1 LSB output | Update time | 15 ms output circuit<br />320 ms input circuit |
| Fault type | Open circuit input/output circuit<br />Overtacking scale (unipolar) input circuit<br />Status byte output circuit | Isolation between channels | 500 V AC for 1 minute<br />750 V DC for 1 minute |
| Isolation between channels and bus | 500 V AC for 1 minute<br />750 V DC for 1 minute | Isolation between input channel and output channel | 500 V for 1 minute<br />750 V for 1 minute |
| marking | CE | Local signalling | for bus communication is present (Active) 1 LED (green)<br /> for external fault 1 LED (red)<br /> for channel is turned on 6 LEDs (green)<br /> for channel fault 6 LEDs (red) |
| Bus current requirement | 350 mA | Module format | Standard |
| Net Weight | 0.7 lb(US) (0.3 kg) | Product Certifications | FM Class 1 Division 2<br />C-Tick.1 |
| Standards | UL 508<br />CSA C22.2 No 142 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation | Operating altitude | <= 16404.2 ft (5000 m) |
Specifications may be subject to change without notice
