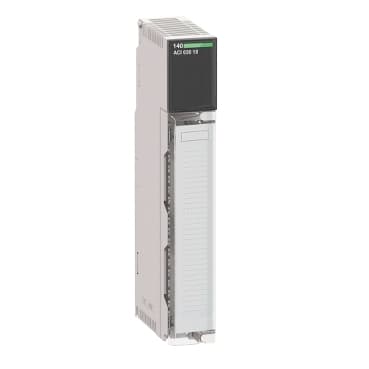

140ARI03010C
Product ID:23755
Updated: 2026/4/3
Key Features
- 1Ensure precise 0.1°C temperature monitoring with 13-bit resolution. 2、Protect signal integrity using 1780V AC and 2500V DC channel isolation. 3、Detect faults like broken wires via local indicators and diagnostics. 4、Reduce heat and energy costs with low 1W power dissipation. 5、Support various Pt and Ni temperature probes across multiple ranges.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Quantum automation platform | Product or Component Type | Analogue input module |
| Analogue input number | 8 | input type | Differential |
| Addressing requirement | 9 input words | Analogue input type | Temperature probe - 100...450 °C Pt 100, Pt 200, Pt 500, Pt 1000<br />Temperature probe - 200...850 °C Pt 100, Pt 200, Pt 500, Pt 1000<br />Temperature probe - 60...180 °C Ni 100, Ni 200, Ni 500, Ni 1000<br />Temperature probe 0.5 mA Ni 100, Ni 200, Ni 500, Ni 1000<br />Temperature probe 2.5 mA Pt 100, Pt 200, Ni 100, Ni 200 |
| Analogue input resolution | 13 bits | Input impedance | >= 10 MOhm |
| Absolute accuracy error | 0.1 °C | Linearity error | +/- 0.01 % full scale<br />+/- 0.5 °C |
| Accuracy drift according to temperature | +/- 0.5 °C 77 °F (25 °C)<br />+/- 0.9 °C 32…140 °F (0…60 °C) | Isolation between channels and bus | 1780 V AC 47...63 Hz 60 s<br />2500 V DC 60 s |
| Isolation between channels | 300 Vrms AC | Update time | 1200 ms 3 wires<br />640 ms 2 wires/4 wires |
| Fault type | Broken wire<br />Overtacking scale | marking | CE |
| Local signalling | for bus communication is present (Active) 1 LED (green)<br /> for external fault 1 LED (red)<br /> for channel is turned on 8 LEDs (green)<br /> for channel fault 8 LEDs (red) | Bus current requirement | 200 mA |
| Power dissipation in W | 1 W | Module format | Standard |
| Net Weight | 0.7 lb(US) (0.3 kg) | Protective treatment | Conformal coating Humiseal 1A33 |
| Standards | UL 508<br />CSA C22.2 No 142 | Product Certifications | FM Class 1 Division 2<br />cUL |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2<br />8 kV on air IEC 801-2 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation | Operating altitude | <= 16404.2 ft (5000 m) |
Specifications may be subject to change without notice
