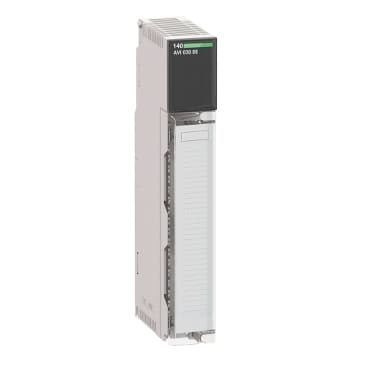

140AVI03000
Product ID:23758
Updated: 2026/7/14
Key Features
- 1Deliver precise measurements with 8 differential analog inputs and 16-bit resolution.
- 2Ensure reliable performance with low accuracy drift of 0.0015%.
- 3Connect versatile sensors supporting unipolar/bipolar voltage and current.
- 4Reduce energy consumption with an efficient design using only 2.2 W.
- 5Diagnose faults quickly using 9 LEDs for module status monitoring.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Quantum automation platform | Product or Component Type | Analogue input module |
| Type of filter | Single pole low pass - 3 dB at 847 Hz +/- 20 % | Analogue input number | 8 |
| input type | Differential | Addressing requirement | 9 input words |
| Analogue input type | Bipolar current 20 mA<br />Bipolar voltage +/- 10 V<br />Bipolar voltage +/- 5 V<br />Unipolar current 0...20 mA<br />Unipolar voltage 0...10 V<br />Unipolar voltage 0...5 V | Analogue input resolution | 16 bits +/- 10 V<br />16 bits +/- 5 V<br />16 bits 0...10 V<br />16 bits 0...20 mA<br />16 bits 0...5 V<br />16 bits 20 mA |
| Linear measuring range | (input range) x 1.024 mA<br />(input range) x 1.024 V | Absolute maximum input | 50 V DC<br />25 mA |
| Input impedance | > 20 Ohm voltage<br />250 MOhm +/- 0.03 % | Absolute accuracy error | +/- 0.03 %<br />+/- 0.05 % of full scale maximum |
| Linearity error | +/- 0.008 % | Accuracy drift according to temperature | +/- 0.0015 % of full scale/°C<br /><= 0.004 % of full scale /°C |
| Common mode rejection | > - 80 dB 60 Hz | Isolation between channels and bus | 500 Vrms AC 60 s<br />750 V DC |
| Isolation between channels | 135 Vrms AC<br />200 V DC | Update time | 10 ms |
| Fault type | Broken wire 4...20 mA<br />Overtacking scale 1...5 V | marking | CE |
| Local signalling | for bus communication is present (Active) 1 LED (green)<br /> for external fault 1 LED (red)<br /> for channel is turned on 8 LEDs (green)<br /> for channel fault 8 LEDs (red) | Bus current requirement | 280 mA |
| Power dissipation in W | 2.2 W | Module format | Standard |
| Net Weight | 0.7 lb(US) (0.3 kg) | Standards | UL 508<br />CSA C22.2 No 142 |
| Product Certifications | FM Class 1 Division 2<br />cUL | Resistance to electrostatic discharge | 4 kV contact IEC 801-2<br />8 kV on air IEC 801-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3 | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
