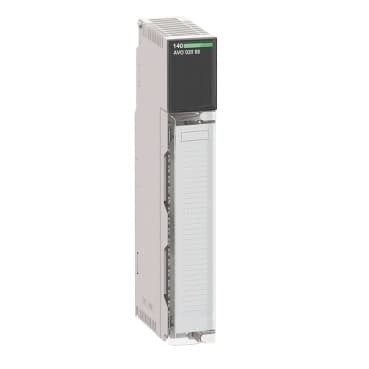

140AVO02000
Product ID:23760
Updated: 2026/7/14
Key Features
- 1Deliver precise 4-channel analog output control.
- 2Ensure accuracy with 12-bit resolution performance.
- 3Enhance safety using 500-V channel isolation.
- 4Achieve real-time control with 3 ms update times.
- 5Save panel space via a compact, standard module format.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Quantum automation platform | Product or Component Type | Analogue output module |
| Analogue output number | 4 | Addressing requirement | 4 output words |
| Analogue output range | +/- 10 V >= 1000 Ohm bipolar voltage<br />+/- 5 V >= 500 Ohm bipolar voltage<br />0...10 V >= 1000 Ohm unipolar voltage<br />0...5 V >= 500 Ohm unipolar voltage | Analogue output resolution | 12 bits |
| Analogue output current | -10…10 mA | Source resistance | 0.1 Ohm |
| Maximum cable distance between devices | 1312.3 ft (400 m) | Absolute accuracy error | +/- 0.15 % of full scale 77 °F (25 °C) |
| Linearity | +/- 1 LSB | Accuracy drift according to temperature | 0.003 % of full scale/°C unipolar<br />0.004 % of full scale/°C bipolar<br />0.005 % of full scale/°C maximum unipolar<br />0.007 % of full scale/°C maximum bipolar |
| Isolation between channels | 500 V for 1 minute 47...63 Hz AC | Isolation between channels and bus | 780 V for 1 minute AC |
| Update time | 3 ms | Setting time | 700 µs to +/- 0.1 % of the final value maximum |
| Bus current requirement | 700 mA | Maximum power dissipation in W | 4.5 W |
| Associated fuse rating | 0.063 mA 3 AG fast blow 250 V | marking | CE |
| Local signalling | for bus communication is present (Active) 1 LED (green)<br /> for external fault 1 LED (red)<br /> for channel is turned on 4 LEDs (green)<br /> for channel fault 4 LEDs (red) | Module format | Standard |
| Net Weight | 0.7 lb(US) (0.3 kg) | Product Certifications | FM Class 1 Division 2<br />cUL |
| Standards | UL 508<br />CSA C22.2 No 142 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation | Operating altitude | <= 16404.2 ft (5000 m) |
Specifications may be subject to change without notice
