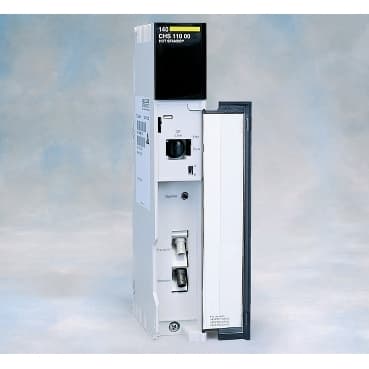

140CHS11000
Product ID:23777
Updated: 2026/7/14
Key Features
- 1Achieve high-speed 10 Mbit/s data transmission for rapid control.
- 2Ensure compatibility with ProWORX 32 NxT and Concept software platforms.
- 3Utilize reliable fiber optic technology for long-distance communication.
- 4Benefit from a fast 13-48ms switching time for efficient failover.
- 5Minimize bus load with a low 700 mA current requirement for scalability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Quantum automation platform | Product or Component Type | Hot standby module |
| Software designation | Concept >= V2.0<br />ProWORX 32 NxT V2.0 | Product Compatibility | All legacy 140CPU with LL984 language<br />All 140CPU43412A/534 with IEC language |
| Input/output type | 800 Series<br />Sy/Max (remote I/O only)<br />Quantum | Transmission Rate | 10 Mbit/s |
| Transmission support medium | Fiber optic 9.8 ft (3 m) | Switching time | 13...48 ms |
| Electrical connection | 1 connector RJ45 for fiber optic receiver<br />1 connector RJ45 for fiber optic transmitter | Local signalling | for module in standby 1 LED (amber)<br /> for communication with I/O module 1 LED (green)<br /> for control process 1 LED (green)<br /> for ready module 1 LED (green)<br /> for communication error 1 LED (red) |
| Bus current requirement | 700 mA | Module format | Standard |
| Net Weight | 2.34 lb(US) (1.06 kg) | RFI immunity | 27…1000 MHz 9.1 V/m (10 V/m) IEC 60801-3 |
| Resistance to electrostatic discharge | 4 kV contact<br />8 kV air | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
Specifications may be subject to change without notice
