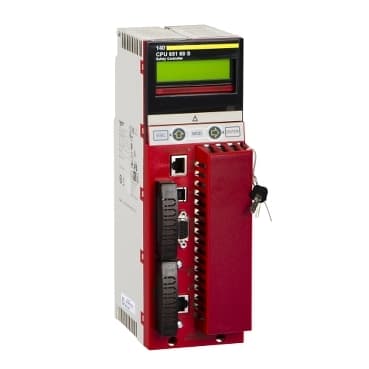

140CPU65160S
Product ID:35627
Updated: 2026/7/14
Key Features
- 1Power control tasks with a 266 MHz clock frequency.
- 2Expand program storage up to 7168 kB using PCMCIA cards.
- 3Manage up to 31,744 discrete I/O points across 31 stations.
- 4Enhance system flexibility with a modular 13-slot design.
- 5Ensure reliable operation with a 2-year warranty.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Quantum automation platform | Product or Component Type | Unity safety processor |
| Software Designation | Unity Pro XL safety | Backup type | Lithium battery 990XCP98000 |
| Clock frequency | 266 MHz | Number of slots | 2<br />4<br />6<br />16<br />10<br />3 |
| Number of racks | 1 - local | Number of remote I/O station | 31 - 1 remote |
| Discrete I/O number | Unlimited (13 slots max) - local - forbidden in Hot Standby application<br />31744 inputs, 31744 outputs - remote | Analogue I/O number | Unlimited (26 slots max) - local - forbidden in Hot Standby application<br />1984 inputs,1984 outputs - remote |
| Number of optional modules | 6 Ethernet 140NOE77111 | Maximum number of connections | 1 Modbus Plus - local<br />1 Modbus RS232/485 Modbus/ASCII)<br />1 USB - local<br />6 Ethernet TCP/IP - local |
| Integrated connection type | 1 Ethernet TCP/IP local<br />1 Modbus local<br />1 Modbus Plus local<br />1 USB local | Checks | Process control |
| Memory description | Expandable 7168 kB - program with PCMCIA card<br />Expandable 8 MB - file storage with PCMCIA card<br />Internal RAM 1024 kB | Switch Function | Key switch memory port on/off |
| Application structure | 1 cyclic/periodic master task | Execution time per instruction | 0.09...0.12 µs on word<br />0.105...0.15 µs Boolean<br />0.96...1.02 µs on fixed-point arithmetic |
| Execution time for 1 Kinstruction | 5.03 65 % Boolean and 35 % numerical<br />5.14 100 % Boolean | System overhead | 1.5 ms master task |
| Bus current requirement | 2760 mA | Maximum supply current | 90 A 140 °F (60 °C) lithium battery<br />60 µA lithium battery |
| [Us] rated supply voltage | 3 V DC lithium battery | Battery Capacity | 1200 Ah |
| Battery Life | 10 year(s) | Display type | LCD 2 lines of 16 characters |
| Local signalling | for Ethernet activity (COM) 1 LED (green)<br /> for Ethernet collision (ERR) 1 LED (red) | Electrical connection | 1 female connector SUB-D 9 for connecting to the Modbus Plus network<br />1 female connector USB type B for connecting to PC<br />2 connectors RJ45 for connecting Modbus bus |
| marking | CE | Product Certifications | CSA<br />C-tick<br />TÜV Rheinland (SIL3)<br />CSA HazLoc |
Specifications may be subject to change without notice
