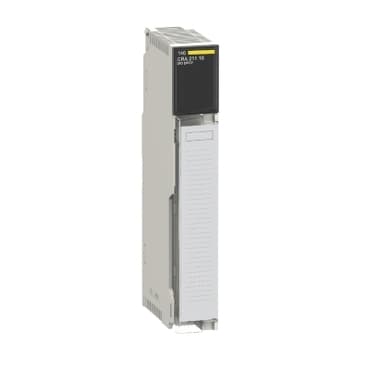

140CRA21110C
Product ID:35644
Updated: 2026/7/14
Key Features
- 1Ensure precise control with a high-performance relay module.
- 2Integrate easily into panels using a compact design.
- 3Reduce maintenance with durable, long-lasting contacts.
- 4Deploy across a wide range of industrial applications.
- 5Simplify setup and operation via an easy-to-use interface.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Quantum automation platform | Product or Component Type | DIO drop interface |
| Number of port | 1 single | [Us] rated supply voltage | 115/230 V AC |
| Supply voltage limits | 85…276 V | Supply frequency | 47...63 Hz |
| Maximum supply current | 0.2 A 115 V<br />0.4 A 230 V | Inrush current | 10 A 115 V<br />20 A 230 V |
| Rated power in VA | 50 VA | Associated fuse rating | 1.5 A |
| Output voltage | 5.1 V | Nominal output current | 3 A |
| Minimum load current | 0 A | Short-circuit protection | With |
| Output overvoltage protection | With | I/O words | 30 I/32 O |
| Typical backplanes | 16 positions<br />3 positions<br />10 positions<br />6 positions<br />4 positions<br />2 positions | Diagnostics startup | Checksum<br />RAM address<br />RAM |
| Diagnostics run time | RAM address<br />RAM<br />Checksum | Power dissipation in W | 11 W |
| Connections - Terminals | Terminal block, 7 poles | Module format | Standard |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2<br />8 kV on air IEC 801-2 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation | Operating altitude | <= 16404.2 ft (5000 m) |
| Protective treatment | TC<br />Conformal coating Humiseal 1A33 | Standards | UL 508 |
| Product Certifications | GOST<br />CSA Class 1 Division 2<br />DNV<br />UL<br />C-tick |
Specifications may be subject to change without notice
