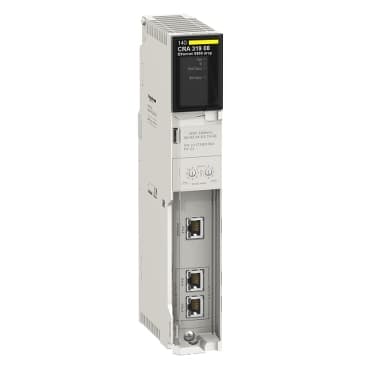

140CRA31908
Product ID:35653
Updated: 2026/7/14
Key Features
- 1Collect and publish input data efficiently to remote I/O head adaptors.
- 2Integrate seamlessly with dual Ethernet/IP and Modbus TCP support.
- 3Operate reliably in 0 to 60°C ambient temperatures.
- 4Monitor real-time status via green/red LED indicators for module, RUN, and I/O.
- 5Meet CSA, UL, CE, and IEC standards for compliance and safety.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Quantum | Product or Component Type | Ethernet RIO drop adaptor |
| Number of port | 3 | Integrated connection type | Ethernet IP/Modbus TCP service port<br />Ethernet IP/Modbus TCP device network |
| communication port protocol | Ethernet IP/Modbus TCP | Product destination | Modicon Quantum |
| Device Application | To provide the ability for a M580 system to control Modicon S908 coaxial bus | Communication Service | The input data are collected and published to the remote I/O head adaptor<br />Output modules are updated with the data received from remote I/O head adaptor |
| Topology | Daisy chain loop<br />S908 bus | Local signalling | for module status (Mod Status) 1 LED (green/red)<br /> for network communication status (Net Status) 1 LED (green/red)<br /> for RUN 1 LED (green)<br /> for I/O 1 LED (red) |
| Product Compatibility | BMEP586040<br />BMEH584040<br />BMEP585040<br />BMEH586040<br />BMEP584040 | Environmental characteristic | Standard environment<br />Hazardous location class I division 2 EN/IEC 61131-1 |
| Width | 6.6 in (167 mm) | Height | 2.0 in (50 mm) |
| Net Weight | 1.221 lb(US) (0.554 kg) | Product Certifications | UL 508<br />CE<br />C-tick |
| Standards | IEC 61000-4-16<br />CSA C22.2 No 142<br />EN 55011 | IP degree of protection | IP20 conforming to EN 61131-2<br />IP20 conforming to IEC 60527 |
| Overvoltage category | Class I EN 61131-2 | Ambient air temperature for operation | 32…140 °F (0…60 °C) IEC 60068-2-2<br />32…140 °F (0…60 °C) IEC 60068-2-2 |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) IEC 60068-2-2<br />-40…185 °F (-40…85 °C) IEC 60068-2-2 | Vibration resistance | 3.5 mm constant amplitude 0.5…8.4 Hz)EN 61131-2<br />1 gn constant acceleration 8.4…150 Hz)EN 61131-2 |
| Operating altitude | 6561.68 ft (2000 m) | Maximum altitude transport | 9842.5 ft (3000 m) |
| Relative humidity | 93 % conforming to IEC 60068 |
Specifications may be subject to change without notice
