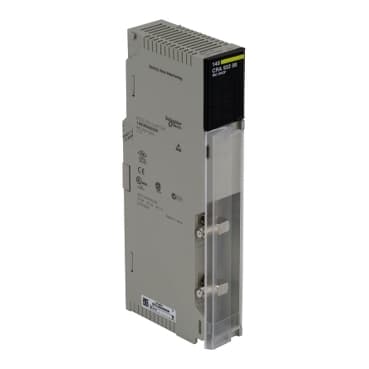

140CRA93200
Product ID:35657
Updated: 2026/7/14
Key Features
- 1Utilize coaxial cable with 75 Ohm impedance for 1544 Mbit/s transmission.
- 2Support up to 27 I/O expansion modules for extensive scalability.
- 3Ensure secure connections with two female F elbowed redundant connectors.
- 4Conduct executive checksum and runtime diagnostics for reliability.
- 5Operate at 3.8 W per channel for energy efficiency.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Quantum automation platform | Product or Component Type | RIO drop adaptor module |
| Product Compatibility | Quantum | Maximum Number of I/O Expansion Module | 27 |
| Type of cable | 75 Ohm coaxial | Transmission Rate | 1544 Mbit/s |
| Dynamic range | 35 dB | Isolation voltage | 500 V DC coaxial center and ground |
| Electrical connection | 2 female connectors F, elbowed with redundant cable | Diagnostics startup | Power up and runtime<br />RAM address/data<br />Executive checksum |
| Power dissipation in W | 3.8 W 2 channels | Bus current requirement | 750 mA 2 channels |
| Module format | Standard | Standards | UL 508<br />CUL<br />CSA C22.2 No 142 |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2<br />8 kV on air IEC 801-2 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation | Operating altitude | <= 16404.2 ft (5000 m) |
Specifications may be subject to change without notice
