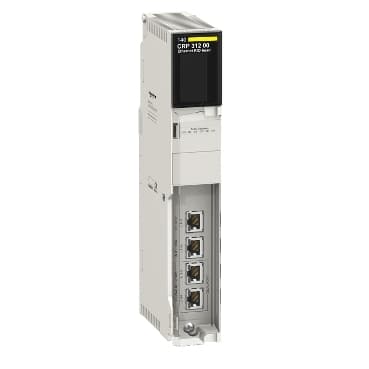

140CRP31200C
Product ID:35660
Updated: 2026/4/3
Key Features
- 1Ensure high reliability and durability for critical industrial applications. 2、Maximize space with a compact design and enhanced power density. 3、Optimize performance using advanced thermal management systems. 4、Meet global safety standards including UL and CE certifications. 5、Deploy in industrial, commercial, and data center environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Quantum | Product or Component Type | Ethernet RIO head for Quantum |
| Number of port | 4 | Integrated connection type | Ethernet IP/Modbus TCP service port<br />Ethernet IP/Modbus TCP interlink port<br />Ethernet IP/Modbus TCP device network |
| communication port protocol | Ethernet IP/Modbus TCP | Communication Service | Diagnostics for remote I/O devices<br />Allows PLC to connect to an Ethernet network<br />RSTP support<br />Configure IP parameters<br />Configuration for remote I/O devices |
| Topology | Daisy chain loop | Local signalling | for activity 1 LED (green)<br /> for ready 1 LED (green)<br /> for module status (Mod Status) 1 LED (green/red)<br /> for network communication status (Net Status) 1 LED (green/red) |
| Product Compatibility | 140CPU67160<br />140CPU65160<br />140CPU67261<br />140CPU65260<br />140CPU65150 | Environmental characteristic | Hazardous location class I division 2 EN/IEC 61131-1<br />Harsh environment |
| Width | 6.6 in (167 mm) | Height | 2.0 in (50 mm) |
| Net Weight | 1.221 lb(US) (0.554 kg) | Product Certifications | UL 508<br />C-tick<br />CE |
| Standards | EN 55011<br />CSA C22.2 No 142<br />IEC 61000-4-16 | IP degree of protection | IP20 conforming to EN 61131-2<br />IP20 conforming to IEC 60527 |
| Overvoltage category | Class I EN 61131-2 | Ambient air temperature for operation | 32…140 °F (0…60 °C) IEC 60068-2-2<br />32…140 °F (0…60 °C) IEC 60068-2-2 |
| Ambient air temperature for storage | -40…185 °F (-40…85 °C) IEC 60068-2-2<br />-40…185 °F (-40…85 °C) IEC 60068-2-2 | Vibration resistance | 3.5 mm constant amplitude 0.5…8.4 Hz)EN 61131-2<br />1 gn constant acceleration 8.4…150 Hz)EN 61131-2 |
| Operating altitude | 6561.68 ft (2000 m) | Maximum altitude transport | 9842.5 ft (3000 m) |
| Relative humidity | 93 % conforming to IEC 60068 |
Specifications may be subject to change without notice
