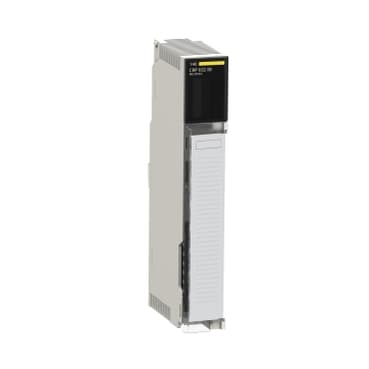

140CRP93200
Product ID:25858
Updated: 2026/7/14
Key Features
- 1Utilize 75 Ohm coaxial cable for 1544 Mbit/s transmission.
- 2Ensure compatibility with Quantum 200/500/800 and Symax systems.
- 3Perform thorough startup diagnostics including LAN and memory checks.
- 4Reduce power dissipation to just 3 W per operational channel.
- 5Achieve 35 dB dynamic range and 500 V DC isolation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Quantum automation platform | Product or Component Type | RIO head-end adaptor module |
| Product Compatibility | Symax (any mix)<br />Quantum 200/500/800 series | Maximum drops/network | 31 |
| I/O words/drop | 64 I/64 O | Type of cable | 75 Ohm coaxial |
| Transmission Rate | 1544 Mbit/s | Dynamic range | 35 dB |
| Isolation voltage | 500 V DC coaxial center and ground | Electrical connection | 2 female connectors F, elbowed with redundant cable |
| Diagnostics startup | Memory check<br />LAN controller check<br />Power up | Power dissipation in W | 3 W 2 channels |
| marking | CE | Bus current requirement | 750 mA 2 channels |
| Module format | Standard | Product Certifications | FM Class 1 Division 2 |
| Standards | UL 508<br />CSA C22.2 No 142<br />CUL | Resistance to electrostatic discharge | 4 kV contact IEC 801-2<br />8 kV on air IEC 801-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3 | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
Specifications may be subject to change without notice
