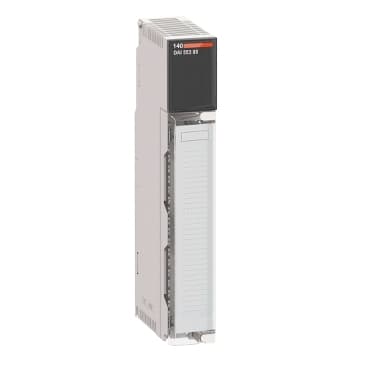

140DAI35300
Product ID:25862
Updated: 2026/4/3
Key Features
- 1Deploy 32 individually isolated AC inputs for robust signal acquisition. 2、Ensure system safety with high 1780 Vrms isolation per channel group. 3、Integrate seamlessly with Schneider software like Unity Pro and Concept. 4、Monitor status instantly using 32 green and one red fault LED. 5、Withstand voltage surges up to 50V for reliable operation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Quantum automation platform | Product or Component Type | VAC discrete input modules |
| Software name | ProWORX 32<br />Concept<br />Unity Pro | Discrete input number | 32 |
| Group of channels | 4 | Addressing requirement | 2 input words |
| Discrete input voltage | 24 V AC | Input current | 11.1 mA 57...63 Hz<br />13.2 mA 47...53 Hz |
| Voltage state 1 guaranteed | 12...30 V AC 57...63 Hz<br />14...30 V AC 47...53 Hz | Voltage state 0 guaranteed | 0...5 V 57...63 Hz<br />0...5 V 47...53 Hz |
| Input impedance | 2600 Ohm capacitive 57...63 Hz<br />3100 Ohm capacitive 47...53 Hz | Network frequency limits | 47…63 Hz |
| Maximum leakage current | 1.9 mA | Absolute maximum input | 30 V continuous<br />32 V 10 s<br />50 V 1 cycle |
| Response Time | 4.9...0.75 ms x line cycle Off-On<br />7.3...12.3 ms On-Off | Isolation between group | 1780 Vrms for 1 minute |
| Isolation between group and bus | 1780 Vrms for 1 minute | Bus current requirement | 250 mA |
| Maximum power dissipation in W | 10.9 W | Local signalling | for bus communication is present (Active) 1 LED (green)<br /> for external fault detected (F) 1 LED (red)<br /> for input status 32 LEDs (green) |
| marking | CE | Module format | Standard |
| Net Weight | 0.75 lb(US) (0.34 kg) | Standards | UL 508<br />CSA C22.2 No 142 |
| Product Certifications | FM Class 1 Division 2<br />cUL | Resistance to electrostatic discharge | 4 kV contact IEC 801-2<br />8 kV on air IEC 801-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3 | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
Specifications may be subject to change without notice
