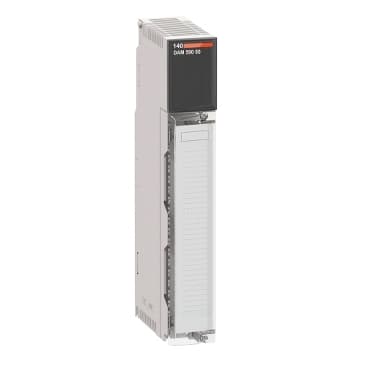

140DAM59000C
Product ID:25879
Updated: 2026/4/3
Key Features
- 1Minimize control cabinet space with a compact module design. 2、Utilize positive logic with high (>85V) and low (<15V) voltage thresholds. 3、Monitor each channel status easily via integrated LED indicators. 4、Configure channels individually or in groups for application flexibility. 5、Apply the module across process, machine, and building automation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Quantum automation platform | Product or Component Type | Mixed discrete I/O module |
| Discrete I/O number | 24 | Discrete input number | 16 2 groups of 8 |
| Addressing requirement | 1 input word<br />0.5 output word | Network frequency limits | 47…63 Hz |
| Discrete input voltage | 115 V AC | input voltage limits | 132 V typical<br />156 V during 10 s<br />200 V during one cycle |
| Voltage state 0 guaranteed | 0...20 V | Voltage state 1 guaranteed | 79...132 V 60 Hz<br />85...132 V 50 Hz |
| Current state 0 guaranteed | <= 0.5 mA | Current state 1 guaranteed | <= 11 mA 50 Hz<br /><= 13.2 mA 60 Hz |
| Input impedance | 14400 Ohm capacitive | Response time | 4.9...0.75 ms at state 0 to state 1<br />7.3...12.3 ms at state 1 to state 0 |
| Discrete output number | 8 2 groups of 4 | Discrete output type | Solid state |
| Discrete output voltage | 115 V | Output voltage limits | 156 V AC during 10 s<br />200 V AC during 1 cycle<br />85...132 V typical AC typical |
| Minimum load | 5 mA | Maximum load current | <= 4 A per point<br /><= 8 A per group<br /><= 8 A per module |
| Maximum voltage drop | <1.5 V | Absolute maximum output | 20 A 2 cycles per point<br />26 A 3 cycles per group<br />30 A 1 cycle per point<br />30 A 2 cycles per group<br />45 A 1 cycle per group<br />10 A 3 cycles per point |
| DV/dt | 400 V/µs | Maximum leakage current | 2.1 mA 115 V AC input circuit<br />2 mA output circuit |
| Response time on output | <= 0.5 ms at state 0 to state 1<br /><= 0.5 ms at state 1 to state 0 | Protection Type | Internal output protection by 5 A fuse per group<br />On output by RC filter |
| Isolation between group | 1000 Vrms for 1 minute | Isolation between channels and bus | 1780 Vrms for 1 minute |
| Fault indication | Blown fuse on output<br />Loss of field power on output | Power dissipation | 5.5 W + (1.1 x total module load current) |
| External power requirement | 85...132 V AC for output circuit | Local signalling | for bus communication is present (Active) 1 LED (green)<br /> for no voltage in output and input (F) 1 LED (red)<br /> for output is turned on 2 LEDs (green)<br /> for fault detected on the input point 2 LEDs (red)<br /> for fault detected on the output point 2 LEDs (red) |
| marking | CE | Bus current requirement | 250 mA |
| Net Weight | 0.99 lb(US) (0.45 kg) | Resistance to electrostatic discharge | 4 kV contact IEC 801-2<br />8 kV on air IEC 801-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…1000 MHz IEC 801-3 | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) | Protective treatment | Conformal coating Humiseal 1A33 |
| Standards | CSA C22.2 No 142<br />FM Class 1 Division 2<br />UL 508 | Product Certifications | cUL |
Specifications may be subject to change without notice
