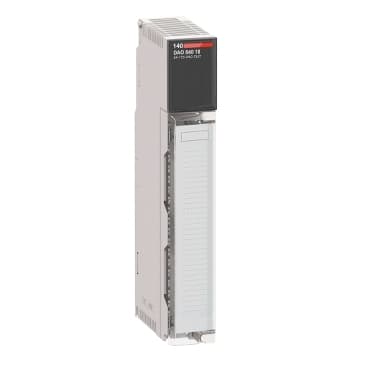

140DAO84010C
Product ID:25883
Updated: 2026/4/3
Key Features
- 1Deliver 16 isolated discrete outputs for reliable control. 2、Operate within a wide 20-132V AC voltage range. 3、Achieve a fast ≤0.5 ms response time. 4、Protect the system with an internal RC filter. 5、Meet CE, UL 508, and CSA safety certifications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Quantum automation platform | Product or Component Type | AC discrete output modules |
| Discrete output number | 16 | Discrete output type | Isolated |
| Group of channels | 16 groups of 1 channel | Supply frequency | 47...63 Hz |
| Maximum voltage drop | 1.5 V | Discrete output voltage | 20...132 V AC |
| Addressing requirement | 1 output word | Absolute maximum output | 156 V 10 s AC<br />200 V during one cycle AC |
| Maximum load current | 1 mA rms 24 V off state leakage/points<br />1 mA rms 48 V off state leakage/points<br />2 mA rms 115 V off state leakage/points<br />16 A rms per module<br />4 A rms sum of four points, continuous<br />4 A rms 20...132 V each point | Surge current | 20 A during 2 cycles per point<br />30 A during 1 cycle per point<br />30 A during 3 cycles per point |
| DV/dt | 400 V/ms | Response Time | <= 0.5 ms at state 0 to state 1<br /><= 0.5 ms at state 1 to state 0 |
| Protection Type | Internal by RC filter | Power dissipation | 1.85 + (1.1 V x total module load current) |
| Associated fuse rating | 5 A | marking | CE |
| Local signalling | for bus communication is present (Active) 1 LED (green)<br /> for external fault detected (F) 1 LED (red)<br /> for input status 16 LEDs (green) | Bus current requirement | 350 mA |
| Module format | Standard | Net Weight | 1.069 lb(US) (0.485 kg) |
| Protective treatment | Conformal coating Humiseal 1A33 | Product Certifications | FM Class 1 Division 2<br />cUL |
| Standards | UL 508<br />CSA C22.2 No 142 | Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 4 kV (contact discharge) conforming to IEC 801-2<br />Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 801-2<br />Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 801-3 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation | Operating altitude | <= 16404.2 ft (5000 m) |
Specifications may be subject to change without notice
