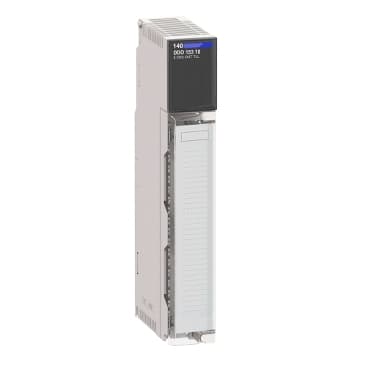

140DDO35310
Product ID:28959
Updated: 2026/7/14
Key Features
- 1Provide 1780 Vrms DC isolation between channels and the bus.
- 2Offer 32 discrete DC outputs grouped into four clusters.
- 3Support a maximum load current of 4 A per group.
- 4Feature rapid response time of ≤1 ms for switching.
- 5Include protective features like transient voltage suppression.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Quantum automation platform | Product or Component Type | Dc discrete output module |
| Discrete output number | 32 | Group of channels | 4 groups of 8 |
| Discrete output logic | Negative logic (sink) | Addressing requirement | 2 output words |
| Discrete output voltage | 24 V DC | Output voltage limits | 19.2...30 V |
| Absolute maximum output | 50 V 1 s decaying pulse | Maximum voltage drop | <0.4 V 0.5 A |
| Maximum load current | 16 A per module<br />4 A per group | Surge current | 5 A 1 ms |
| Response Time | <= 1 ms at state 0 to state 1<br /><= 1 ms at state 1 to state 0 | Maximum leakage current | 0.4 mA 30 V |
| Load inductance | Inductance(H) = 0.5/((current(A))² x (switching frequency(Hz))) | Maximum tungsten load | 12 W 24 V |
| Fault indication | Loss of field power<br />Blown fuse | Associated fuse rating | 3 A each point<br />5 A per group |
| Isolation between channels and bus | 1780 Vrms DC for 1 minute | Isolation between group | 500 Vrms DC for 1 minute |
| Protection Type | Internal output protection by 5 A fuse per group | Power dissipation | 2.0 W + (0.4 V x total load current) |
| marking | CE | Local signalling | for bus communication is present (Active) 1 LED (green)<br /> for external fault detected (F) 1 LED (red)<br /> for input status 32 LEDs (green) |
| Bus current requirement | 330 mA | Module format | Standard |
| Net Weight | 0.99 lb(US) (0.45 kg) | Product Certifications | FM Class 1 Division 2<br />RINA<br />GOST<br />C-tick<br />RMRS |
| Standards | UL 508<br />CSA C22.2 No 142 | Resistance to electrostatic discharge | 4 kV contact IEC 801-2<br />8 kV on air IEC 801-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3 | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Relative Humidity | 95 % without condensation |
| Operating altitude | <= 16404.2 ft (5000 m) |
