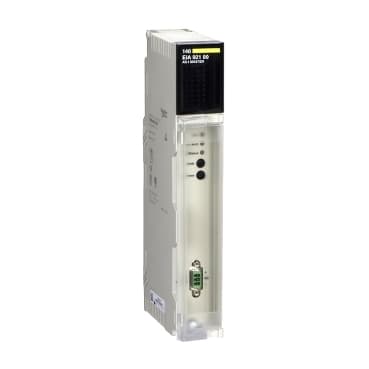

140EIA92100C
Product ID:29384
Updated: 2026/7/14
Key Features
- 1Facilitate seamless communication with AS-Interface cabling compatibility.
- 2Deliver high-speed performance with ≤5 ms cycles and 167 kbit/s rate.
- 3Configure flexibly with support for 124 I/O and 31 slave devices.
- 4Receive reliable power directly via the AS-Interface line.
- 5Troubleshoot easily using 32 LEDs for visual slave and I/O feedback.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Quantum automation platform | Product or Component Type | AS-Interface master module |
| Range Compatibility | AS-Interface cabling system | AS-i version | V1 |
| Actuator sensor interface profile [AS-i] | M2 | Addressing | Standard |
| Maximum cycle time | 5 ms | Bus length | 0.0000000000…328.08 ft (0…100 m) without repeater |
| Discrete input number | 124 | Discrete output number | 124 |
| Number of server device(s) | 31 | Number of module per PLC | 2 per Quantum PLC distributed drop<br />4 per Quantum PLC local drop<br />4 per Quantum PLC remote drop |
| Supply | Via AS-Interface line | [Us] rated supply voltage | 30 V DC |
| AS-i cabling system cycle time | 156 x (n + 1) µs 31<br />156 x (n + 2) µs | Transmission Rate | 167 kbit/s |
| Reverse polarity protection | Internal | Local signalling | for slave addresses and state of slave I/O bits 32 LEDs |
| Electrical connection | 1 male connector SUB-D 3 pins AS-Interface link | current consumption | <= 100 mA |
| Typical current consumption | 60 mA 30 V DC | marking | CE |
| Net Weight | 0.99 lb(US) (0.45 kg) | IP Degree of Protection | IP20 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Product Certifications | UL<br />FM<br />C-tick<br />CSA<br />GOST |
Specifications may be subject to change without notice
