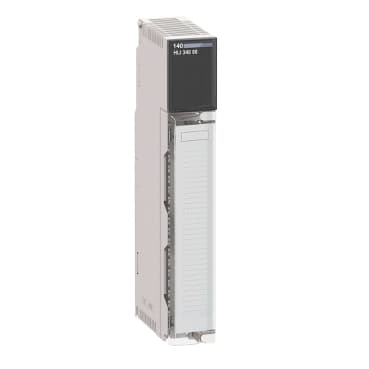

140HLI34000

Product ID:29390

Updated: 2026/7/14

Key Features

1Equip with 16 fast isolated discrete inputs for reliable high-speed signal detection.
2Achieve swift 130 µs Off-On and 30 µs On-Off transition response times.
3Ensure enhanced safety with internal reverse polarity protection and robust isolation.
4Minimize energy consumption with a low 400 mA bus current and efficient power dissipation.
5Simplify installation via backplane mounting for straightforward system integration.

Need a quote? Enter your quantity and get pricing fast.

Qty

Detailed engineering parameters

Parameter	Value	Parameter	Value
Range of Product	Modicon Quantum automation platform	Product or Component Type	Latch/interrupt module
Number of inputs	16	Discrete input type	Fast isolated
Absolute maximum input	30 V DC	Voltage state 0 guaranteed	-3...5 V
Voltage state 1 guaranteed	15...30 V	Current state 0 guaranteed	2...8 mA
Current state 1 guaranteed	<= 0.5 mA	Response time	130 µs Off-On<br />30 µs On-Off
Reverse polarity protection	Internal in 30 V	Isolation between channels	500 V 60 s AC
Isolation between channels and bus	1780 V 60 s AC	Bus current requirement	400 mA
Power dissipation	2.0 W + (0.3 x number of points on)	Mounting Support	Backplane for local architecture
marking	CE	Module format	Standard
Resistance to electrostatic discharge	4 kV contact IEC 801-2<br />8 kV on air IEC 801-2	Resistance to electromagnetic fields	9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3
Ambient Air Temperature for Operation	32…140 °F (0…60 °C)	Ambient Air Temperature for Storage	-40…185 °F (-40…85 °C)
Relative Humidity	95 % without condensation	Operating altitude	<= 16404.2 ft (5000 m)
Standards	UL 508	Product Certifications	DNV<br />GOST<br />CSA Class 1 Division 2<br />UL<br />FM Class 1 Division 2<br />C-tick

Specifications may be subject to change without notice
