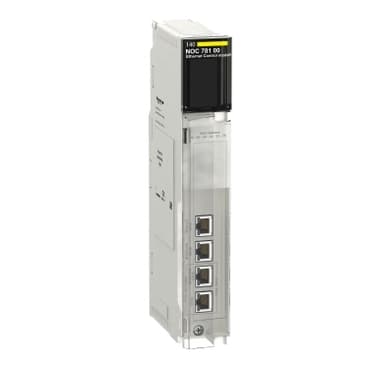

140NOC78100C
Product ID:29399
Updated: 2026/7/14
Key Features
- 1Enable seamless communication via Modbus TCP and Ethernet/IP protocols.
- 2Ensure reliability with a hot standby redundant architecture.
- 3Access comprehensive services like embedded routing and NTP sync.
- 4Support up to 64 high-performance 10/100 Mbit/s connections.
- 5Configure and monitor easily through an embedded web server.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Quantum automation platform | Product or Component Type | Ethernet control module |
| Product Compatibility | 140CPU6xxxx | communication port protocol | EtherNet/IP<br />Modbus TCP |
| Exchange mode | Full duplex | Maximum number of connections | 64 |
| Transmission Rate | 10/100 Mbit/s | Redundancy | Yes hot standby redundant architecture |
| Topology | Redundant ring<br />Daisy chain loop | Web server | Embedded |
| Communication Service | DHCP/BootP server<br />SMTP e-mail notification<br />Embedded router<br />CIP implicit messaging (I/O communication)<br />SNMP agent<br />Embedded 4-port switch<br />NTP time synchronization<br />CIP Explicit messaging (client messaging)<br />FDR server<br />Quality of Service (QoS)<br />Device Type Manager (DTM) | Ethernet service | Rapid Scanning Tree Protocol (RSTP) |
| Transmission support medium | Twisted pair | Port Ethernet | RJ45 10BASE-T/100BASE-TX |
| marking | CE | Supply | Via the power supply of the rack |
| Local signalling | for communication on the bus (Active) 1 LED (green)<br /> for configuration status (Ready) 1 LED (green)<br /> for module status (Mod Status) 1 LED (green/red)<br /> for network communication status (Net Status) 1 LED (green/red)<br /> for device network status (Net Status 1) 1 LED (green/red)<br /> for extended DIO network status (Net Status 2) 1 LED (green/red) | Module format | Standard |
| Net Weight | 0.761 lb(US) (0.345 kg) | Standards | UL 508<br />CSA C22.2 No 142<br />FM Class 1 Division 2<br />IEC 61000-4-16<br />EN 61131-1<br />EN 61131-2<br />EN 55011 |
| Product Certifications | Merchant Navy<br />LR<br />C-tick<br />GOST<br />hazardous location class 1, division 2 | IP Degree of Protection | IP20 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Relative humidity | 10…95 % 140 °F (60 °C) without condensation |
Specifications may be subject to change without notice
