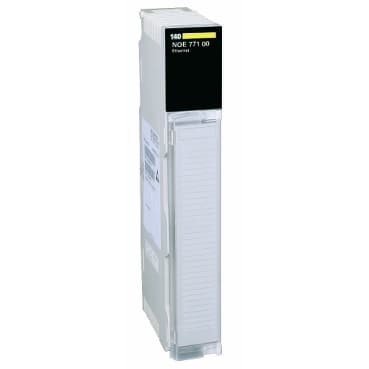

140NOE77100C
Product ID:29401
Updated: 2026/4/3
Key Features
- 1Ensure reliable Ethernet connectivity with dual MT/RJ fiber and RJ45 interfaces. 2、Support continuous uptime via hot standby redundant architecture. 3、Integrate seamlessly using efficient Modbus TCP messaging. 4、Enable easy monitoring with Transparent Ready web services. 5、Receive your module quickly with cost-effective delivery options.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Quantum automation platform | Product or Component Type | Ethernet network TCP/IP module |
| Concept | Transparent Ready | Web server | Class B20 |
| Web services | Data Editor (via PC terminal)<br />Diagnostics via predefined web pages<br />Rack viewer | Communication Service | I/O scanning<br />Modbus TCP messaging |
| communication port protocol | Ethernet Modbus TCP/IP | Physical interface | MT/RJ - 100BASE-FX fiber optic<br />RJ45 - 10BASE-T/100BASE-TX twisted pair |
| Transmission Rate | 10/100 Mbit/s | Redundancy | Yes hot standby redundant architecture |
| Supply | Via the power supply of the rack | marking | CE |
| Local signalling | for 10 Mbps or 100 Mbps data rate (10 MB/100 MB) 1 LED<br /> for collision detection (Coll) 1 LED<br /> for download mode (Kernel) 1 LED<br /> for Ethernet module fault (Fault) 1 LED<br /> for Ethernet network status (RUN) 1 LED<br /> for full-duplex mode (Fduplex) 1 LED<br /> for module ready (Ready) 1 LED<br /> for network active (Link) 1 LED<br /> for rack operational (Active) 1 LED<br /> for transmission/reception activity (TxAct/RxAct) 1 LED | Current consumption | 750 mA 5 V DC |
| Module format | Standard | Net Weight | 0.761 lb(US) (0.345 kg) |
| IP Degree of Protection | IP20 | Product Certifications | cUL<br />UL 508 |
| Standards | FM Class 1 Division 2<br />CSA C22.2 No 142 | Protective treatment | Conformal coating Humiseal 1A33 |
| Resistance to electrostatic discharge | 4 kV contact IEC 801-2<br />8 kV on air IEC 801-2 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 80...1000 MHz IEC 801-3 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative Humidity | 95 % without condensation | Operating altitude | <= 14763.78 ft (4500 m) |
Specifications may be subject to change without notice
