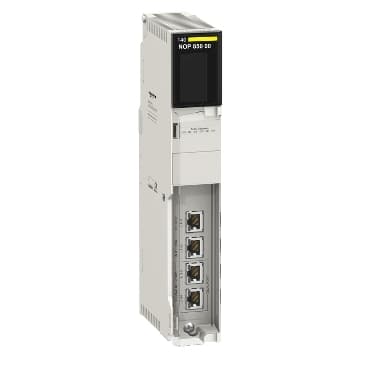

140NOP85000
Product ID:29415
Updated: 2026/4/3
Key Features
- 1Ensure high reliability with advanced anti-interference and self-diagnostic hardware. 2、Integrate seamlessly using plug-and-play design without system stoppage. 3、Enable advanced communication via IEC61850 protocol for efficient data transfer. 4、Apply across industries like CNC, metallurgy, petroleum, and natural gas. 5、Install easily with a compact, lightweight design for simple management.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Quantum automation platform | Product or Component Type | Ethernet communication module |
| Product Compatibility | 140CPU6xxxx | communication port protocol | Modbus TCP<br />IEC 61850 |
| Exchange mode | Half duplex, full duplex, autonegotiation | Maximum number of connections | 32 |
| Transmission Rate | 10/100/1000 Mbps | Redundancy | Yes hot standby redundant architecture |
| Topology | Redundant ring<br />Daisy chain loop | Communication Service | IEC 61850 goose<br />NTP time synchronization<br />SNMP agent<br />IEC 61850 MMS messaging client<br />Embedded router<br />Modbus TCP messaging<br />Quality of Service (QoS)<br />Embedded 4-port switch<br />IEC 61850 MMS messaging server |
| Ethernet service | Rapid Scanning Tree Protocol (RSTP) | Transmission support medium | Twisted pair |
| Port Ethernet | RJ45 10BASE-T/100BASE-TX/1000BASE-T | marking | CE |
| Supply | Via the power supply of the rack | Local signalling | for communication on the bus (Active) 1 LED (green)<br /> for configuration status (Ready) 1 LED (green)<br /> for module status (Mod Status) 1 LED (green/red)<br /> for network communication status (Net Status) 1 LED (green/red) |
| Module format | Standard | Net Weight | 0.761 lb(US) (0.345 kg) |
| Standards | EN 61131-2<br />IEC 61000-4-16<br />EN 61131-1<br />EN 55011<br />HazLoc<br />UL 61010-1<br />CSA C22.2 No 142 | Product Certifications | RCM<br />CSA<br />Merchant Navy<br />KEMA<br />UL<br />KETOP<br />CE<br />hazardous location class 1, division 2 |
| IP Degree of Protection | IP20 | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Relative humidity | 10…95 % 140 °F (60 °C) without condensation |
Specifications may be subject to change without notice
