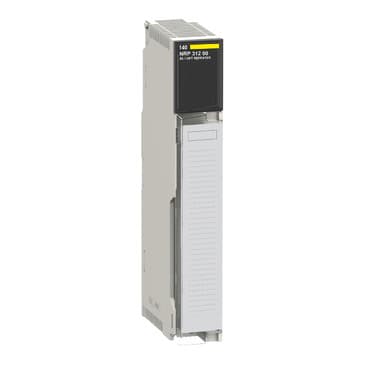

140NRP31200
Product ID:29417
Updated: 2026/4/3
Key Features
- 1Achieve 100 MB/s high-speed data transfer for efficient communication. 2、Utilize robust 1310nm multi-mode fibre optic technology for reliability. 3、Connect via dual fibre optic (LC) and dual Ethernet (RJ45) ports. 4、Monitor status easily with clear LED indicators for faults and communication. 5、Meet CSA, FM, and UL industrial standards for safe operation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Quantum automation platform | Product or Component Type | Fibre converter |
| Optic fiber type | Multi mode | Bus current requirement | 1000 mA |
| Power dissipation in W | 5 W | Inrush current | 1 A 5 V DC |
| Number of Port | 2 fiber optic LC<br />2 ETHERNET RJ45 | Local signalling | 1 LED green RDY module status<br />1 LED red ERR internal fault, module failure<br />1 LED green STS1 channel 1 link status<br />1 LED green FX1 ACT channel 1 communication status<br />1 LED green STS2 channel 2 link status<br />1 LED green FX2 ACT channel 2 communication status |
| Wavelength | 0.000051575 in (1310 nm) | Optic distance between 2 transceivers | 6561.7 ft (2000 m) 50/125 µm)-23.5…-14 dBm<br />9842.5 ft (3000 m) 62.5/125 µm)-20…-14 dBm |
| Attenuation | -23.5…-14 dB 50/125 µm)<br />-20…-14 dB 62.5/125 µm) | Rise/fall time | 3 ns |
| Receiver Sensitivity | - 30 dBm | Detected silence | -45 dBm |
| marking | CE | Material | PC (polycarbonate) |
| Width | 1.59 in (40.34 mm) | Height | 9.8 in (250 mm) |
| Depth | 4.09 in (103.85 mm) | Net Weight | 1.221 lb(US) (0.554 kg) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 0…95 % | Operating altitude | 0...6561.68 ft (0...2000 m) |
| Standards | CSA C22.2 No 142<br />FM Class 1 Division 2<br />UL 508 | Product Certifications | C-tick<br />TÜV<br />Merchant Navy |
Specifications may be subject to change without notice
