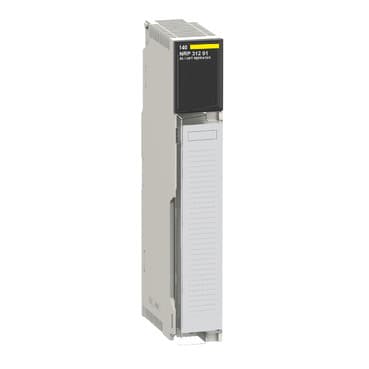

140NRP31201C
Product ID:29420
Updated: 2026/7/14
Key Features
- 1Support 100 MB Ethernet and 2 LC fiber ports for efficient communication.
- 2Construct with robust polycarbonate for long-lasting durability and performance.
- 3Feature 4 LEDs for clear module, error, and communication status monitoring.
- 4Operate in 0°C to 60°C with up to 2000 meters of optic distance.
- 5Meet CSA, UL, and FM Class 1 Div 2 standards for safety and reliability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Quantum automation platform | Product or Component Type | Fibre converter |
| Optic fiber type | Single mode | Bus current requirement | 1000 mA |
| Power dissipation in W | 5 W | Inrush current | 1 A 5 V DC |
| Number of Port | 2 fiber optic LC<br />2 ETHERNET RJ45 | Local signalling | 1 LED green RDY module status<br />1 LED red ERR internal fault, module failure<br />1 LED green STS1 channel 1 link status<br />1 LED green FX1 ACT channel 1 communication status<br />1 LED green STS2 channel 2 link status<br />1 LED green FX2 ACT channel 2 communication status |
| Wavelength | 0.000051575 in (1310 nm) | Optic distance between 2 transceivers | 49212.6 ft (15000 m) 9/125 µm)-15…-8 dBm |
| Attenuation | -15…-8 dB 9/125 µm) | Rise/fall time | 2.5 ns |
| Receiver Sensitivity | - 28 dBm | Detected silence | -45 dBm |
| marking | CE | Material | PC (polycarbonate) |
| Width | 1.59 in (40.34 mm) | Height | 9.8 in (250 mm) |
| Depth | 4.09 in (103.85 mm) | Net Weight | 1.221 lb(US) (0.554 kg) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 0…95 % | Operating altitude | 0...6561.68 ft (0...2000 m) |
| Standards | CSA C22.2 No 142<br />UL 508<br />FM Class 1 Division 2 | Product Certifications | C-tick<br />Merchant Navy<br />TÜV |
Specifications may be subject to change without notice
