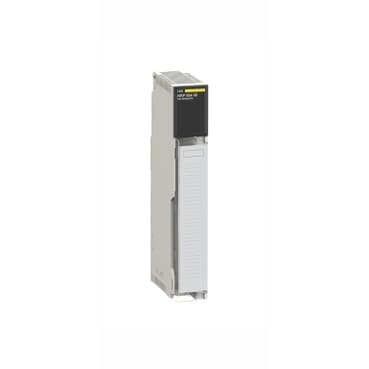

140NRP95400
Product ID:29421
Updated: 2026/4/3
Key Features
- 1Ensure high-speed data transmission for Modicon Quantum platforms. 2、Extend network distances with multi-mode fiber optic technology. 3、Monitor performance easily via comprehensive LED indicators. 4、Meet UL, FM, and CSA standards for industrial safety. 5、Integrate seamlessly into compact, durable RIO systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Quantum automation platform | Product or Component Type | Fibre optic repeater |
| Optic fiber type | Multi mode | Bus current requirement | 700 mA |
| Power dissipation in W | 5 W | Inrush current | 1 A 5 V DC |
| Number of Port | 2 fiber optic ST<br />1 coaxial connector | Local signalling | 1 LED green RDY module status<br />1 LED red ERR internal fault, module failure<br />1 LED green coaxial communication status<br />2 LEDs green optical communication status<br />1 LED red FAULT error<br />1 LED red activity detected |
| Wavelength | 0.000032284 in (820 nm) | Optic distance between 2 transceivers | 6561.7 ft (2000 m) 50/125 µm)3.5 dBm<br />9842.5 ft (3000 m) 62.5/125 µm)3.5 dBm<br />9842.5 ft (3000 m) 100/140 µm)5 dBm |
| Attenuation | -20…-13 dB 50/125 µm)<br />-16…-10 dB 62.5/125 µm)<br />-10.5…-4 dB 100/140 µm) | Rise/fall time | 20 ns |
| Receiver Sensitivity | - 30 dBm | Dynamic range | 20 dB |
| Detected silence | -36 dBm | marking | CE |
| Material | PC (polycarbonate) | AWG Gauge | AWG 14...AWG 1 |
| Width | 1.59 in (40.34 mm) | Height | 9.8 in (250 mm) |
| Depth | 4.09 in (103.85 mm) | Net Weight | 1.221 lb(US) (0.554 kg) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 0…95 % | Operating altitude | 0...6561.68 ft (0...2000 m) |
| Standards | CSA C22.2 No 142<br />UL 508<br />FM Class 1 Division 2 | Product Certifications | TÜV |
Specifications may be subject to change without notice
