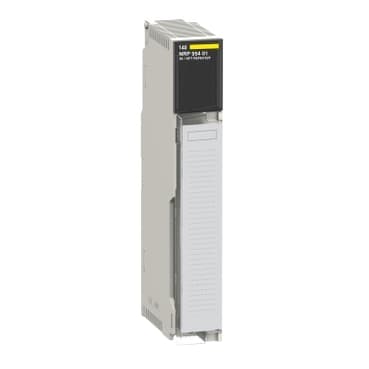

140NRP95401C
Product ID:29823
Updated: 2026/7/15
Key Features
- 1Enhance data transmission with a high-performance single-mode fiber optic repeater.
- 2Ensure seamless communication using a non-interfering design.
- 3Install a compact, polycarbonate-built unit for harsh environments.
- 4Monitor status easily with advanced green and red LED indicators.
- 5Meet FM, CSA, and UL standards for safe industrial operation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Quantum automation platform | Product or Component Type | Fibre optic repeater |
| Optic fiber type | Single mode | Bus current requirement | 750 mA |
| Power dissipation in W | 5 W | Inrush current | 1.8 A 5 V DC |
| Number of Port | 2 fiber optic LC<br />1 coaxial connector | Local signalling | 1 LED green RDY module status<br />1 LED red ERR internal fault, module failure<br />1 LED green coaxial communication status<br />2 LEDs green optical communication status<br />1 LED red FAULT error<br />1 LED red activity detected |
| Wavelength | 0.000051181 in (1300 nm) | Optic distance between 2 transceivers | 52493.4 ft (16000 m) 9/125 µm)0.45 dBm |
| Attenuation | -15…-8 dB 9/125 µm) | Rise/fall time | 20 ns |
| Receiver Sensitivity | - 25 dBm | Dynamic range | 20 dB |
| Detected silence | -45 dBm | marking | CE |
| Material | PC (polycarbonate) | AWG Gauge | AWG 14...AWG 1 |
| Width | 1.59 in (40.34 mm) | Height | 9.8 in (250 mm) |
| Depth | 4.09 in (103.85 mm) | Net Weight | 1.221 lb(US) (0.554 kg) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Relative humidity | 0…95 % | Operating altitude | 0...6561.68 ft (0...2000 m) |
| Standards | FM Class 1 Division 2<br />CSA C22.2 No 142<br />UL 508 | Product Certifications | Merchant Navy |
Specifications may be subject to change without notice
