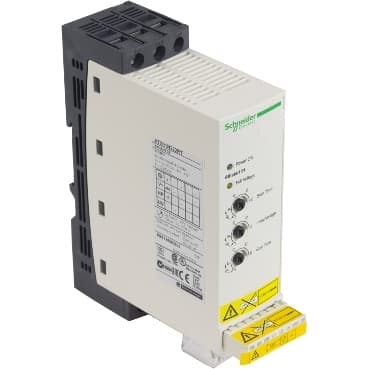

ATS01N222RT
Product ID:30322
Updated: 2026/4/4
Key Features
- 1Minimize space with one of the smallest soft starters, measuring just 45 mm wide. 2、Reduce operational noise and heat dissipation for improved efficiency. 3、Configure easily with only two key settings, designed for non-specialists. 4、Provide smooth acceleration for pumps and fans to avoid mechanical stress. 5、Control 3-phase motors rated up to 22 amperes and 15 horsepower.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Altistart 01 | Product or Component Type | Soft starter |
| Product destination | Asynchronous motors | Product Specific Application | Simple machine |
| Device short name | ATS01 | Phase | 3 phase |
| [Us] rated supply voltage | 460...480 V - 10...10 % | Maximum Horse Power Rating | 10 hp, 3 phase 460...480 V<br />15 hp, 3 phase 460...480 V |
| IcL starter rating | 22 A | Utilisation category | AC-53B EN/IEC 60947-4-2 |
| Current consumption | 110 A at nominal load | Type of start | Start with voltage ramp |
| Power dissipation in W | 124.5 W in transient state<br />4.5 W at full load and at end of starting | Assembly style | With heat sink |
| Function Available | Integrated bypass | Supply voltage limits | 414…528 V |
| Supply frequency | 50...60 Hz - 5...5 % | Network Frequency | 47.5...63 Hz |
| Output voltage | <= power supply voltage | [Uc] control circuit voltage | Built into the starter |
| Starting time | 1 s / 100<br />5 s / 20<br />10 s / 10<br />Adjustable from 1 to 10 s | Deceleration time symb | Adjustable from 1 to 10 s |
| Starting torque | 30...80 % of starting torque of motor connected directly on the line supply | Discrete input type | Logic LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm |
| Discrete input voltage | 24...40 V | Discrete input logic | Positive LI1, LI2, BOOST < 5 V <= 0.2 mA > 13 V, >= 0.5 mA |
| Discrete output current | 2 A DC-13<br />3 A AC-15 | Discrete output type | Open collector logic LO1 end of starting signal<br />Relay outputs R1A, R1C NO |
| Discrete output voltage | 24 V 6...30 V) open collector logic | Minimum switching current | 10 mA 6 V DC relay outputs |
| Maximum switching current | Relay outputs 2 A 250 V AC cos phi = 0.5 20 ms inductive<br />Relay outputs 2 A 30 V DC cos phi = 0.5 20 ms inductive | Display type | 1 LED Green)starter powered up<br />1 LED Yellow)nominal voltage reached |
| Tightening torque | 4.4 lbf.in (0.5 N.m)<br />16.8…22.1 lbf.in (1.9…2.5 N.m) | Electrical connection | 4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit<br />Screw connector - rigid without cable end 1 0.5...2.5 mm² AWG 14 control circuit<br />4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit<br />Screw connector - rigid 2 0.5...1 mm² AWG 17 control circuit<br />Screw connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit<br />4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuit<br />Screw connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit<br />4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit<br />4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuit<br />Screw connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit |
| marking | CE | Operating position | Vertical +/- 10 degree |
| Height | 6.06 in (154 mm) | Width | 1.8 in (45 mm) |
| Depth | 5.2 in (131 mm) | Net Weight | 1.23 lb(US) (0.56 kg) |
| compatibility code | ATS01N2 | Electromagnetic compatibility | Conducted and radiated emissions level B CISPR 11<br />Conducted and radiated emissions level B IEC 60947-4-2<br />Damped oscillating waves level 3 IEC 61000-4-12<br />Electrostatic discharge level 3 IEC 61000-4-2<br />EMC immunity level 3 EN 50082-1<br />EMC immunity level B EN 50082-2<br />Harmonics level 3 IEC 1000-3-2<br />Harmonics level 3 IEC 1000-3-4<br />Immunity to conducted interference caused by radio-electrical fields level 3 IEC 61000-4-6<br />Immunity to electrical transients level 4 IEC 61000-4-4<br />Immunity to radiated radio-electrical interference level 3 IEC 61000-4-3<br />Micro-cuts and voltage fluctuation IEC 61000-4-11<br />Voltage/current impulse level 3 IEC 61000-4-5 |
| Standards | EN/IEC 60947-4-2 | Product Certifications | UL<br />CCC<br />C-tick<br />GOST<br />CSA |
| IP Degree of Protection | IP20 | Pollution degree | 2 EN/IEC 60947-4-2 |
| Vibration resistance | 1 gn 13…150 Hz)EN/IEC 60068-2-6<br />1.5 mm peak to peak 3…13 Hz)EN/IEC 60068-2-6 | Shock resistance | 15 gn 11 ms EN/IEC 60068-2-27 |
| Relative humidity | 5…95 % without condensation or dripping water EN/IEC 60068-2-3 | Ambient air temperature for operation | 14…104 °F (-10…40 °C) without derating)<br />104…122 °F (40…50 °C) with current derating of 2 % per °C) |
| Ambient air temperature for storage | -13…158 °F (-25…70 °C) EN/IEC 60947-4-2 | Operating altitude | <= 3280.84 ft (1000 m) without derating<br />> 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m |
