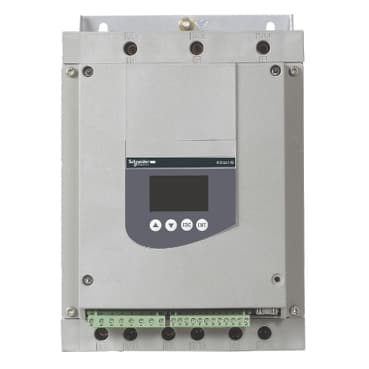

ATS48C11Y
Product ID:31273
Updated: 2026/4/5
Key Features
- 1Optimize asynchronous motor startup to reduce mechanical stress and extend lifespan. 2、Support motors from 22 kW to 90 kW with up to 96A current. 3、Protect equipment with overload, phase imbalance, and voltage protection. 4、Simplify setup via a user-friendly interface with built-in diagnostics. 5、Ensure versatile operation for pumps, fans, compressors, and conveyors.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Altistart 48 | Product or Component Type | Soft starter |
| Product destination | Asynchronous motors | Product Specific Application | Heavy duty industry and pumps |
| Device short name | ATS48 | Utilisation category | AC-53A |
| Ue power supply voltage | 208...690 V - 15...10 % | power supply frequency | 50...60 Hz - 5...5 % |
| Motor power kW | 22 kW 230 V for severe applications<br />30 kW 230 V for standard applications<br />45 kW 400 V for severe applications<br />45 kW 440 V for severe applications<br />55 kW 400 V for standard applications<br />55 kW 440 V for standard applications<br />55 kW 500 V for severe applications<br />55 kW 525 V for severe applications<br />75 kW 500 V for standard applications<br />75 kW 525 V for standard applications<br />75 kW 660 V for severe applications<br />75 kW 690 V for severe applications<br />90 kW 660 V for standard applications<br />90 kW 690 V for standard applications | Maximum Horse Power Rating | 100 hp 575 V for standard applications<br />25 hp 208 V for severe applications<br />30 hp 208 V for standard applications<br />30 hp 230 V for severe applications<br />40 hp 230 V for standard applications<br />60 hp 460 V for severe applications<br />75 hp 460 V for standard applications<br />75 hp 575 V for severe applications |
| Device connection | In the motor supply line | Protection type | Phase failure line<br />Thermal protection motor<br />Thermal protection starter |
| Standards | EN/IEC 60947-4-2 | Product Certifications | GOST<br />TCF<br />CCC<br />SEPRO<br />NOM 117<br />C-tick<br />CSA<br />UL<br />DNV |
| marking | CE | Discrete input number | 5 |
| Discrete input type | PTC, 750 Ohm 77 °F (25 °C)<br />Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm | Discrete input logic | Positive logic Stop, Run, LI3, LI4 < 5 V <= 2 mA > 11 V, >= 5 mA |
| Minimum switching current | 10 mA 6 V DC relay outputs | Discrete output number | 2 |
| Discrete output type | LO1) logic output 0 V common configurable<br />LO2) logic output 0 V common configurable<br />R1) relay outputs fault relay NO<br />R2) relay outputs end of starting relay NO<br />R3) relay outputs motor powered NO | Analogue output type | Current output AO 0-20 mA or 4-20 mA 500 Ohm |
| communication port protocol | Modbus | Connector Type | 1 RJ45 |
| Communication data link | Serial | Physical interface | RS485 multidrop |
| Transmission Rate | 4800, 9600 or 19200 bps | Function Available | External bypass (optional) |
| Operating position | Vertical +/- 10 degree | Height | 11.4 in (290 mm) |
| Width | 7.5 in (190 mm) | Depth | 9.3 in (235 mm) |
| Net Weight | 18.3 lb(US) (8.3 kg) | Electromagnetic compatibility | Conducted and radiated emissions level A IEC 60947-4-2<br />Conducted and radiated emissions level B IEC 60947-4-2<br />Damped oscillating waves level 3 IEC 61000-4-12<br />Electrostatic discharge level 3 IEC 61000-4-2<br />Immunity to electrical transients level 4 IEC 61000-4-4<br />Immunity to radiated radio-electrical interference level 3 IEC 61000-4-3<br />Voltage/current impulse level 3 IEC 61000-4-5 |
| Relative humidity | 0…95 % without condensation or dripping water EN/IEC 60068-2-3 | Ambient air temperature for operation | 104…140 °F (40…60 °C) with current derating of 2 % per °C)<br />14…104 °F (-10…40 °C) without derating) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Operating altitude | <= 3280.84 ft (1000 m) without derating<br />> 3280.84...6561.68 ft (> 1000...2000 m) with current derating of 2.2 % per additional 100 m |
Specifications may be subject to change without notice
