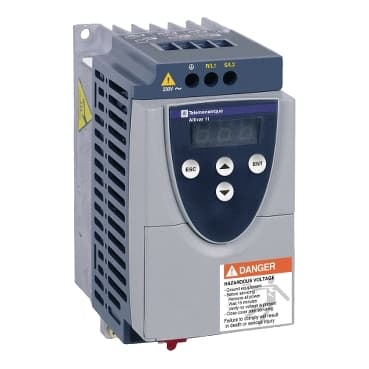

ATV11HU09M2U
Product ID:31600
Updated: 2026/4/5
Key Features
- 1Integrate an EMC filter for enhanced electromagnetic compatibility. 2、Adjust switching frequency from 2–16 kHz for optimized performance. 3、Protect your system with overcurrent and overheating safeguards. 4、Install easily in tight spaces with a compact, lightweight build. 5、Support linear acceleration ramps for precise conveyor control.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Altivar | Product or Component Type | Variable speed drive |
| Product Specific Application | Simple machine | Component name | ATV11 |
| Application market | USA market | Assembly style | With heat sink |
| EMC filter | Without EMC filter | Built-in fan | Without |
| Phase | Single phase | [Us] rated supply voltage | 200...240 V - 15...10 % |
| Supply frequency | 50...60 Hz - 5...5 % | Motor power kW | 0.37 kW |
| Maximum Horse Power Rating | 0.5 hp | Line current | 6 A 208 V, Isc = 1 kA |
| Nominal output current | 2.4 A 230 V motor 4 kHz | Maximum transient current | 3.6 A 60 s |
| Power dissipation in W | 23 W at nominal load | Switching frequency | 2...16 kHz adjustable<br />4...16 kHz with derating factor |
| Braking torque | 150 % of nominal motor torque with braking resistor at high inertia<br />20 % of nominal motor torque without braking resistor at no load<br />80 % of nominal motor torque with braking resistor at no load | Asynchronous motor control profile | Sensorless flux vector control with PWM type motor control signal |
| Electrical connection | Terminal 1.5 mm², AWG 14 AI1, RA-RC, LI1...LI4, DO)<br />Terminal 1.5 mm², AWG 14 L1, L2, L3, U, V, W, PA, PC) | Supply | Internal supply for logic inputs 15 V +/- 15 %) 100 mA overload and short-circuit protection<br />Internal supply for reference potentiometer (2.2 to 10 kOhm) 5...5.25 VDC 10 mA overload and short-circuit protection |
| Analogue input type | Configurable current AI1 4...20 mA 250 Ohm without adding resistor<br />Configurable voltage AI1 0...5 V 40000 Ohm only with internal supply<br />Configurable current AI1 0...20 mA 250 Ohm<br />Configurable voltage AI1 0...10 V 40000 Ohm | Sampling duration | AI1 20 ms analog<br />LI1...LI4 20 ms discrete |
| Response time | 20 ms DO | Linearity error | DO +/- 1 % output<br />AI +/- 5 % input |
| Discrete input type | Assignable Ll1 forward 5000 Ohm 15 V 24 V<br />Assignable Ll2 reverse 5000 Ohm 15 V 24 V<br />Assignable Ll3/Ll4 4 preset speeds 5000 Ohm 15 V 24 V | Discrete input logic | Positive logic (source) LI1...LI4), < 5 V, > 11 V |
| Discrete output type | Assignable as external voltage DO 30 V max, 30 mA<br />Assignable as open collector logic output DO 100 Ohm, 50 mA max<br />Factory set as PWM open collector output DO at 2 kHz 10 mA max<br />Protected relay logic RA-RC 1 NO<br />Assignable as internal voltage DO | Minimum switching current | RA-RC 10 mA 24 V DC |
| Maximum switching current | 2 A 250 V AC inductive cos phi = 0.4 7 ms RA-RC<br />2 A 30 V DC inductive cos phi = 0.4 7 ms RA-RC<br />5 A 250 V AC resistive cos phi = 1 0 ms RA-RC<br />5 A 30 V DC resistive cos phi = 1 0 ms RA-RC | Protection type | Line supply overvoltage drive<br />Line supply undervoltage drive<br />Overcurrent between output phases and earth drive<br />Overheating protection drive<br />Short-circuit between motor phases drive<br />Thermal protection motor |
| Frequency resolution | Display unit 0.1 Hz<br />Analog input converter A/D, 10 bits | Electromagnetic compatibility | 1.2/50 µs - 8/20 µs surge immunity test level 3 EN/IEC 61000-4-5<br />Electrical fast transient/burst immunity test level 4 EN/IEC 61000-4-4<br />Electrostatic discharge immunity test level 3 EN/IEC 61000-4-2<br />Radiated radio-frequency electromagnetic field immunity test level 3 EN/IEC 61000-4-3 |
| Maximum motor cable length | 65.6 ft (20 m) with additional EMC filter from 2 to 16 kHz EN 55011 class A group 1<br />16.4 ft (5 m) with additional EMC filter from 2 to 16 kHz EN 55011 class B | Vibration resistance | 1 gn 13…200 Hz)EN/IEC 60068-2-6<br />1.5 mm peak to peak 3…13 Hz)EN/IEC 60068-2-6 |
| Shock resistance | 15 gn 11 ms EN/IEC 60068-2-27 | Relative humidity | 5…93 % without condensation IEC 60068-2-3<br />5…93 % without dripping water IEC 60068-2-3 |
| Ambient air temperature for operation | 14…104 °F (-10…40 °C) without derating<br />104…122 °F (40…50 °C) by removing the protective cover from the top of the drive<br />122…140 °F (50…60 °C) by removing the protective cover from the top of the drive with current derating of 2.2 % per °C | Operating altitude | <= 3280.84 ft (1000 m) without derating<br />> 3280.84 ft (1000 m) with current derating 1 % per 100 m |
| Product destination | Asynchronous motors | Supply voltage limits | 170…264 V |
| Network frequency limits | 47.5…63 Hz | Speed drive output frequency | 0…200 Hz |
| Nominal switching frequency | 4 kHz | Speed range | 1…20 |
| Transient overtorque | 150...170 % of nominal motor torque | Regulation loop | Factory-set with the speed loop stability and gain<br />Possible correction for machines with high resistive torque/inertia/fast cycles<br />Adjustable frequency |
| Motor slip compensation | Adjustable<br />Preset in factory | Prospective line Isc | 1 kA |
| Output voltage | <= 2 x power supply voltage | Insulation | Electrical between power and control |
| Analogue input number | 1 | Discrete input number | 4 |
| Discrete output number | 2 | Acceleration and deceleration ramps | Linear from 0 to 99.9 s |
| Braking to standstill | By DC injection | Insulation resistance | >= 500 mOhm |
| marking | CE | Operating position | Vertical +/- 10 degree |
| CAD overall width | 2.8 in (72 mm) | CAD overall height | 5.6 in (142 mm) |
| CAD overall depth | 4.9 in (125 mm) | Outer dimension | 142 x 72 x 101 mm |
| Net Weight | 2.4 lb(US) (1.1 kg) | Standards | EN 50178 |
| Product Certifications | CSA<br />N998<br />UL<br />C-tick | IP Degree of Protection | IP20 |
| Ambient Air Temperature for Storage | -13…149 °F (-25…65 °C) |
Specifications may be subject to change without notice
