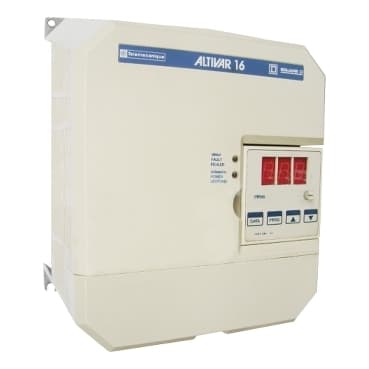

ATV16U18M2S
Product ID:32509
Updated: 2026/7/15
Key Features
- 1Utilize a 16-bit microprocessor and ASIC for precise motor control.
- 2Protect your system with overvoltage, undervoltage, and short circuit safeguards.
- 3Handle high inertia and overhauling loads in fast-cycle applications reliably.
- 4Reduce motor noise and limit energy losses with random frequency modulation.
- 5Integrate easily into panels with its compact, internationally certified design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Altivar 16 | Product or Component Type | Variable speed drive |
| Product destination | Asynchronous motors | [Us] rated supply voltage | 200...240 V - 15...10 % |
| Supply frequency | 50/60 Hz +/- 5 % | Network frequency limits | 47.5…63 Hz |
| Phase | 1 phase | Motor power kW | 0.75 kW |
| Maximum Horse Power Rating | 1 hp | Line current | 9.8 A 200 V<br />8.2 A 240 V |
| Apparent power | 1 kVA 230 V | Prospective line Isc | 1 kA |
| Continuous output current | 4.8 A 200 V<br />4.8 A 240 V | Speed drive output frequency | 0.5…400 Hz |
| Nominal switching frequency | 4 kHz | Switching frequency | 12...16 kHz with derating factor<br />2...12 kHz adjustable |
| Local signalling | for DC bus energized 1 LED (red) | Output voltage | <= power supply voltage |
| communication port protocol | Modbus | Connector Type | 1 RJ45 |
| Physical interface | 2-wire RS 485 | Transmission frame | RTU |
| Transmission Rate | 9600 bps or 19200 bps | Data format | 8 bits, 1 stop, odd even or no configurable parity |
| Height | 6.3 in (160 mm) | Width | 5.9 in (150 mm) |
| Depth | 4.7 in (120 mm) | Option card | Communication card APOGEE FLN<br />Communication card BACnet<br />Communication card LonWorks<br />Communication card METASYS N2 |
| IP degree of protection | IP31 EN 60530<br />IP31 EN 61800-5-2<br />IP31 IEC 60529<br />IP31 IEC 61800-5-1 | Ambient air temperature for operation | 14…104 °F (-10…40 °C) without derating)<br />104…122 °F (40…50 °C) with derating factor) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Operating altitude | <= 6561.68 ft (2000 m)<br />3280.84...9842.52 ft (1000...3000 m) |
Specifications may be subject to change without notice
