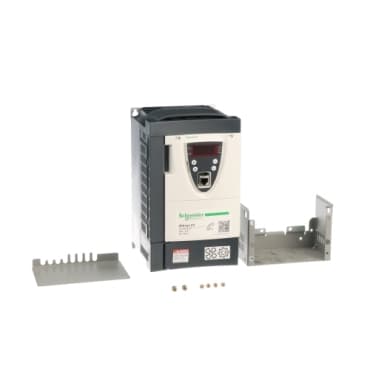

ATV61HU40N4T1
Product ID:26847
Updated: 2026/7/15
Key Features
- 1Control motor speed with precision and reliability.
- 2Save energy with quadratic U/f control mode.
- 3Connect via Modbus, CANopen, or BACnet protocols.
- 4Protect motors with 120% overload capacity.
- 5Configure using SoMove PC or mobile software.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Asynchronous motor control profile | Variable torque standard | Device short name | ATV61 |
| Range of Product | Altivar 61 | Line Rated Current | 10.5 A |
| Cable entry | Type 1 conduit entry outdoor | communication port protocol | Modbus<br />CANopen |
| Input voltage | 400/480 V AC | Keypad Type | LCD keypad |
| Maximum Horse Power Rating | 5 hp | Motor power kW | 4 kW |
| Phase | 3 phase input<br />3 phase output | Output voltage | <= rated supply voltage |
| EMC filter | Class A EMC filter integrated | IP Degree of Protection | IP20 |
| NEMA Degree of Protection | No enclosure rating (open device) | Protective treatment | None |
Specifications may be subject to change without notice
