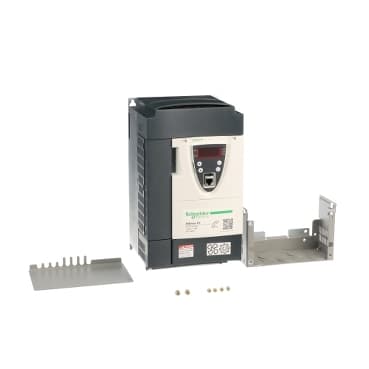

ATV61HU55N4T1
Product ID:27345
Updated: 2026/7/15
Key Features
- 1Deliver 5.5 kW of power in a 3-phase configuration for demanding tasks.
- 2Minimize electromagnetic interference with an integrated Level 3 EMC filter.
- 3Adjust switching frequency from 1 to 16 kHz with a derating factor.
- 4Handle transient currents up to 17.1 A for 60 seconds against surges.
- 5Provide enhanced protection with a 22 kA prospective line ISC rating.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Asynchronous motor control profile | Variable torque standard | Device short name | ATV61 |
| Range of Product | Altivar 61 | Line Rated Current | 14.3 A |
| Cable entry | Type 1 conduit entry outdoor | communication port protocol | CANopen<br />Modbus |
| Input voltage | 400/480 V AC | Keypad Type | LCD keypad |
| Maximum Horse Power Rating | 7.5 hp | Motor power kW | 5.5 kW |
| Phase | 3 phase input<br />3 phase output | Output voltage | <= rated supply voltage |
| EMC filter | Class A EMC filter integrated | IP Degree of Protection | IP20 |
| NEMA Degree of Protection | No enclosure rating (open device) | Protective treatment | None |
Specifications may be subject to change without notice
