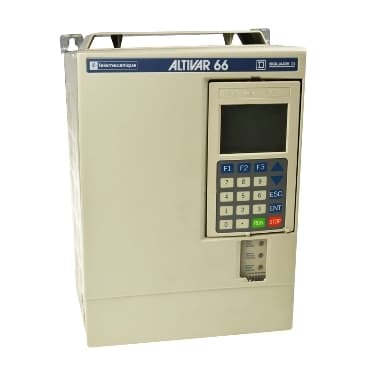

ATV66C13N4
Product ID:29000
Updated: 2026/7/15
Key Features
- 1Optimize motor performance with reliable and efficient speed control.
- 2Ensure setup flexibility across a wide 380-480V AC input voltage range.
- 3Deliver robust power management via three-phase motor operation.
- 4Achieve precise speed regulation and energy savings with advanced controls.
- 5Guarantee long-term reliability through durable, high-quality construction.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Altivar 66 | Product or Component Type | Variable speed drive |
| Product destination | Asynchronous motors | [Us] rated supply voltage | 380...460 V - 10...10 % |
| Supply frequency | 50...60 Hz - 5...5 % | Network Frequency | 47.5...63 Hz |
| Phase | 3 phase | Motor power kW | 90 kW 380...460 V |
| Maximum Horse Power Rating | 125 hp | Line current | 161 A 380 V<br />146 A 460 V |
| Apparent power | 130 kVA 400 V | Continuous output current | 172 A 380 V<br />137 A 460 V |
| Output frequency | 0…0.3 kHz | Nominal switching frequency | 2.5 kHz |
| Switching frequency | 2...4.9 kHz<br />4...8 kHz with current derating | Local signalling | 1 graphic display terminal |
| Output voltage | 400 V | communication port protocol | Modbus |
| Physical interface | RS485 multidrop serial link | Transmission Rate | 9.6...19.2 kbauds |
| Height | 38.6 in (980 mm) | Width | 23.03 in (585 mm) |
| Depth | 15.4 in (392 mm) | Option card | Communication card Profibus DP<br />Communication card CANopen<br />Communication card DeviceNet<br />Communication card Ethernet<br />Communication card Fipio<br />Communication card Uni-Telway<br />Communication card Interbus-S<br />Communication card Modbus Plus<br />Communication card AS-Interface |
| IP degree of protection | IP00 | Ambient air temperature for operation | 32…104 °F (0…40 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Operating altitude | <= 3280.84 ft (1000 m)<br />> 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m |
Specifications may be subject to change without notice
