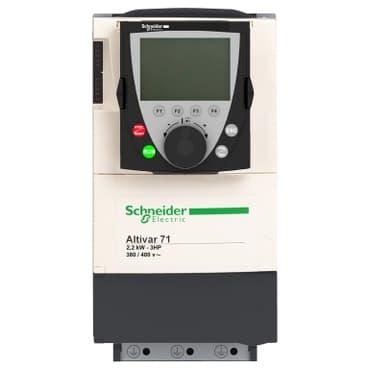

ATV71H075N4T1
Product ID:29081
Updated: 2026/7/15
Key Features
- 1Deliver precise speed control for demanding applications.
- 2Support a wide output frequency range from 0.1 to 599 Hz.
- 3Minimize electrical interference with an integrated EMC filter.
- 4Operate with both asynchronous and synchronous motors.
- 5Enhance durability via robust design with efficient heat sink.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Asynchronous motor control profile | Constant torque standard | Device short name | ATV71 |
| Range of Product | Altivar 71 | Line Rated Current | 2.3 A |
| Cable entry | Type 1 conduit entry outdoor | communication port protocol | CANopen<br />Modbus |
| Input voltage | 400/480 V AC | Keypad Type | LCD keypad |
| Maximum Horse Power Rating | 1 hp | Motor power kW | 0.75 kW |
| Phase | 3 phase output<br />1 phase input | Output voltage | <= rated supply voltage |
| EMC filter | Class A EMC filter integrated | IP Degree of Protection | IP20 |
| NEMA Degree of Protection | No enclosure rating (open device) | Protective treatment | None |
Specifications may be subject to change without notice
