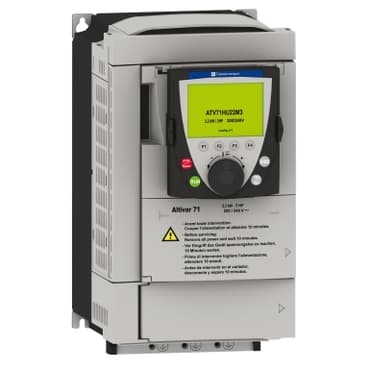

ATV71HU22M3T1
Product ID:29168
Updated: 2026/4/4
Key Features
- 1Optimize constant torque applications with high-performance AC drive. 2、Ensure versatile compatibility using 208/240VAC voltage rating. 3、Deliver powerful 3HP (2.2kW) output for demanding operations. 4、Enhance reliability with an integrated EMC filter. 5、Simplify control via the included graphic terminal.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Asynchronous motor control profile | Constant torque standard | Device short name | ATV71 |
| Range of Product | Altivar 71 | Line Rated Current | 11 A<br />8 A 1 phase |
| Cable entry | Type 1 conduit entry outdoor | communication port protocol | Modbus<br />CANopen |
| Input voltage | 208/240 V AC | Keypad Type | LCD keypad |
| Maximum Horse Power Rating | 3 hp<br />2 hp, 1 phase | Motor power kW | 2.2 kW<br />1.5 kW, 1 phase |
| Phase | 3 phase output<br />1 phase input<br />3 phase | Output voltage | <= rated supply voltage |
| EMC filter | Class A EMC filter integrated | IP Degree of Protection | IP20 |
| NEMA Degree of Protection | No enclosure rating (open device) | Protective treatment | None |
Specifications may be subject to change without notice
