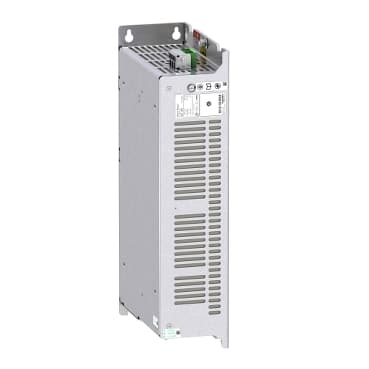

ATVRD15N4
Product ID:29470
Updated: 2026/7/15
Key Features
- 1Recover up to 15 kW of energy efficiently.
- 2Ensure robust operation in harsh environments with coated PCBs.
- 3Connect seamlessly to Altivar Machine ATV320, ATV340, and ATV900 drives.
- 4Integrate comprehensive safety features including Safety Torque Off.
- 5Operate reliably from -10°C to 60°C with dust resistance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Altivar | Range Compatibility | Altivar Machine ATV340<br />Altivar Machine ATV320<br />Altivar Process ATV900 |
| Product or Component Type | Power module | Device Application | Energy regeneration |
| [Us] rated supply voltage | 380...500 V - 15...10 % | [Ue] rated operational voltage | 456...778 V DC |
| Kw Rating | 13.5 kW | Network Frequency | 45...65 Hz |
| Phase | 3 phase | Fixing Mode | By screws |
| Maximum voltage drop at rated load | 3 % | Electrical connection | Control removable screw terminal block 0.5...1.5 mm², AWG 20...AWG 16 bottom)<br />Power supply removable screw terminal block 6 mm², AWG 8 top)<br />DC bus removable screw terminal block 6 mm², AWG 8 bottom) |
| Input current | 31.8 A 380 V AC voltage inputs continuous)<br />27.9 A 500 V AC voltage inputs continuous)<br />43.1 A 380 V AC voltage inputs transient for 60 s)<br />36.3 A 500 V AC voltage inputs transient for 60 s) | Input power | 13.5 kW 380...500 V AC voltage inputs continuous)<br />20.3 kW 380...500 V AC voltage inputs transient for 60 s) |
| Maximum DC bus voltage | 300...880 V DC | Output Current | 25.9 A 380 V AC continuous)<br />23.2 A 500 V AC continuous)<br />36.5 A 380 V AC transient for 60 s)<br />29.7 A 500 V AC transient for 60 s) |
| Width | 4.1 in (105 mm) | Height | 15.7 in (399 mm) |
| Depth | 9.3 in (235 mm) | Net Weight | 25.4 lb(US) (11.5 kg) |
| Standards | IEC 61800-3<br />IEC 61800-5-1 | Product Certifications | cUL |
| Ambient air temperature for operation | 14…122 °F (-10…50 °C) without derating<br />122…140 °F (50…60 °C) with derating factor | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Operating altitude | <= 3280.84 ft (1000 m) without derating<br />3280.84...9842.52 ft (1000...3000 m) with power derating 1 % per 100 m | Operating position | Vertical or horizontal position |
| Type of cooling | Fan | Environmental characteristic | Chemical pollution resistance class 3C3 IEC 60721-3-3<br />Dust pollution resistance class 3S2 IEC 60721-3-3 |
| Pollution degree | 2 IEC 61800-5-1 |
