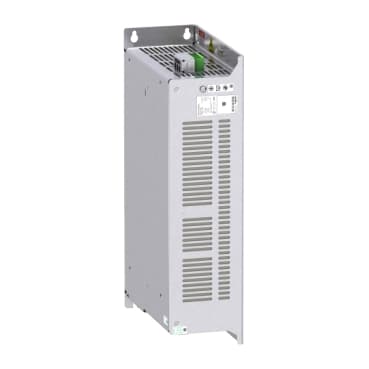

ATVRU75N4
Product ID:29471
Updated: 2026/4/3
Key Features
- 1Monitor and control energy use in real time for peak efficiency. 2、Reduce harmonic distortion to under 48% THDi at 80% load. 3、Integrate process data seamlessly via built-in Ethernet connectivity. 4、Regenerate braking energy back into the electrical grid. 5、Install and maintain easily with a compact modular design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Altivar | Range Compatibility | Altivar Machine ATV340<br />Altivar Process ATV900<br />Altivar Machine ATV320 |
| Product or Component Type | Power module | Device Application | Energy regeneration |
| [Us] rated supply voltage | 380...500 V - 15...10 % | [Ue] rated operational voltage | 456...778 V DC |
| Kw Rating | 6.8 kW | Network Frequency | 45...65 Hz |
| Phase | 3 phase | Fixing Mode | By screws |
| Maximum voltage drop at rated load | 3 % | Electrical connection | Control removable screw terminal block 0.5...1.5 mm², AWG 20...AWG 16 bottom)<br />Power supply removable screw terminal block 2.5...4 mm², AWG 12...AWG 10 top)<br />DC bus removable screw terminal block 2.5...4 mm², AWG 12...AWG 10 bottom) |
| Input current | 16.5 A 380 V AC voltage inputs continuous)<br />14.5 A 500 V AC voltage inputs continuous)<br />22.9 A 380 V AC voltage inputs transient for 60 s)<br />19.1 A 500 V AC voltage inputs transient for 60 s) | Input power | 6.8 kW 380...500 V AC voltage inputs continuous)<br />10.2 kW 380...500 V AC voltage inputs transient for 60 s) |
| Maximum DC bus voltage | 300...880 V DC | Output Current | 13.4 A 380 V AC continuous)<br />11.9 A 500 V AC continuous)<br />18.4 A 380 V AC transient for 60 s)<br />15.4 A 500 V AC transient for 60 s) |
| Width | 3.1 in (80 mm) | Height | 13.3 in (337 mm) |
| Depth | 6.9 in (175 mm) | Net Weight | 13.2 lb(US) (6 kg) |
| Standards | IEC 61800-5-1<br />IEC 61800-3 | Product Certifications | cUL |
| Ambient air temperature for operation | 14…122 °F (-10…50 °C) without derating<br />122…140 °F (50…60 °C) with derating factor | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Operating altitude | <= 3280.84 ft (1000 m) without derating<br />3280.84...9842.52 ft (1000...3000 m) with power derating 1 % per 100 m | Operating position | Vertical or horizontal position |
| Type of cooling | Fan | Environmental characteristic | Chemical pollution resistance class 3C3 IEC 60721-3-3<br />Dust pollution resistance class 3S2 IEC 60721-3-3 |
| Pollution degree | 2 IEC 61800-5-1 |
Specifications may be subject to change without notice
