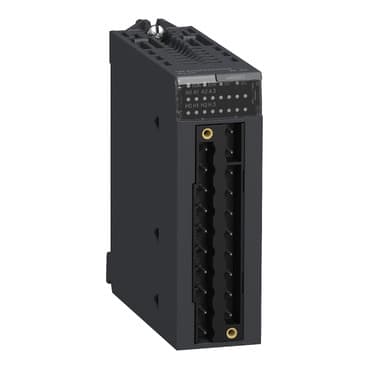

BMEAHO0412C
Product ID:29475
Updated: 2026/7/14
Key Features
- 1Provide 4 isolated current outputs for reliable operation.
- 2Integrate seamlessly using the HART communication protocol.
- 3Achieve 0.1% measurement accuracy at 25°C for precision.
- 4Operate in extreme temperatures from -25°C to 60°C.
- 5Meet CE, UL, CSA, and other global compliance standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Analog output module |
| Application specific I/O | HART | Product Compatibility | BMEP58... processor<br />BMEXBP... backplane<br />ABE7CPA21<br />Head module BMECRA31210<br />BMXFTB20... terminal block |
| Electrical connection | 20 ways terminal block<br /> Telefast | Isolation between channels | Isolated |
| Measurement error | 0.1 % of full scale 25 °C<br />0.45 % of full scale - 25...60 °C | Temperature drift | 45 ppm/°C |
| Isolation voltage | 1000 V DC 60 s between channels<br />1400 V DC 60 s between channels and ground<br />1400 V DC 60 s between channels and bus | Checks | Broken wire detection |
| Load impedance ohmic | 600 Ohm 0...20 mA<br />570 Ohm 0...21 mA | Analogue output number | 4 |
| Analogue output type | Current 4...20 mA | Analogue output resolution | 15 bits + sign |
| Topology | Point-to-point | Function Available | I/O mapping |
| Net Weight | 0.492 lb(US) (0.223 kg) | Ambient Air Temperature for Operation | -13…140 °F (-25…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive | Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22 |
| Standards | EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0 | Environmental characteristic | Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2 |
| Protective treatment | Conformal coating |
Specifications may be subject to change without notice
