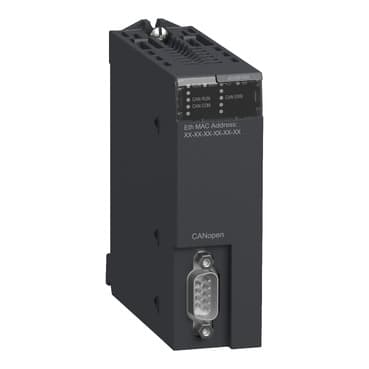

BMECXM0100H
Product ID:29478
Updated: 2026/4/3
Key Features
- 1Deploy in robust industrial environments for high reliability and durability. 2、Master CANopen networks to enhance process control and operational efficiency. 3、Integrate seamlessly with existing Profibus DP industrial systems. 4、Support transmission rates up to 12 Mbit/s for fast data exchange. 5、Utilize a standard module format for easy integration into control systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | CANopen communication module |
| Structure type | Open industrial fieldbus | Product Compatibility | M580 PLC |
| Physical interface | DB9 connector | Mode of Transmission | NRZ |
| Transmission support medium | Profibus DP twisted shielded pairs cable | Transmission rate | 9.6 kbit/s, 3937.008 ft (1200 m)<br />19.2 kbit/s, 3937.008 ft (1200 m)<br />93.75 kbit/s, 3937.008 ft (1200 m)<br />187.5 kbit/s, 3280.8 ft (1000 m)<br />500 kbit/s, 1312.3 ft (400 m)<br />1.5 Mbit/s, 656.2 ft (200 m)<br />3 Mbit/s, 328.08 ft (100 m)<br />12 Mbit/s, 328.08 ft (100 m) |
| Number of server device(s) | 63 | Communication service | Implicit exchange of process data - 20...70 °C |
| Integrated connection type | Profibus DP - 1 SUB-D 9-pin female Profibus DP | [Us] rated supply voltage | 24 V DC internal |
| Current consumption | 70 mA | Module format | Standard |
| Ambient Air Temperature for Operation | -13…158 °F (-25…70 °C) | Ambient Air Temperature for Storage | -49…185 °F (-45…85 °C) |
| Relative Humidity | 10…95 % | Operating altitude | <= 6561.68 ft (2000 m) |
| Protective treatment | Conformal coating | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive |
| Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22 | Standards | EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0 |
| Environmental characteristic | Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2 |
Specifications may be subject to change without notice
