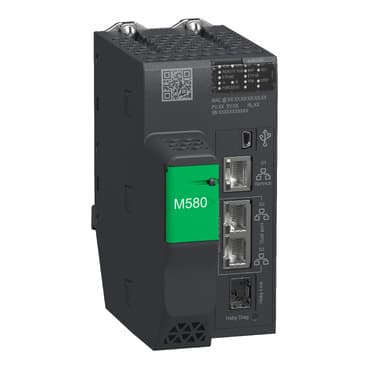

BMEH582040
Product ID:29479
Updated: 2026/4/3
Key Features
- 1Support up to 8192 discrete and 2048 analog I/O channels. 2、Ensure continuous operation with Hot Standby (HSBY) redundancy. 3、Utilize 8MB integrated RAM and 4GB expandable flash memory. 4、Connect seamlessly via two Ethernet TCP/IP ports. 5、Meet EN 61131-2 and other key standards with CE/UL certifications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M580 | Product or Component Type | Redundant processor module |
| Number of racks | 1 | Application specific I/O | Counter<br />Accurate time stamping<br />Serial link<br />HART<br />Motion control<br />SSI encoder |
| Checks | Process control | Control channels | Programmable loops |
| Integrated connection type | 1 Ethernet TCP/IP service port<br />2 Ethernet TCP/IP device network<br />USB type mini B<br />1 Ethernet HSBY port | Number of remote I/O station | 8 - 2 X80 remote drop |
| Number of distributed equipment | 64 | Communication module processor capacity | 2 Ethernet communication module<br />16 AS-Interface module |
| Communication Service | DIO scanner<br />RIO scanner | Memory description | Expandable flash, 4 GB data storage<br />Integrated RAM, 10 kB system memory<br />Integrated RAM, 8 MB program<br />Integrated RAM, 768 kB data |
| Application structure | 1 periodic fast task<br />1 cyclic/periodic master task | Cybersecurity | Achilles certified<br />DoS prevention<br />IPSec<br />SNMP logging<br />Syslog protocol support<br />Transport layer security<br />Audit trail<br />Embedded firewall<br />Firmware signature<br />Password protection<br />Port hardening<br />Secure communication (HTTPS)<br />Security log |
| Number of instructions per ms | 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic<br />40 Kinst/ms 100 % Boolean | Current consumption | 270 mA 24 V DC |
| MTBF reliability | 650000 H | marking | CE |
| Vibration resistance | 3 gn | Shock resistance | 30 gn |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| IP Degree of Protection | IP20 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
| Supply | Internal power supply via rack | Status LED | 1 LED (Green) processor running (RUN)<br />1 LED (Red) processor or system fault (ERR)<br />1 LED (Red) I/O module fault (I/O)<br />1 LED (Green) download in progress (DL)<br />1 LED (Red) memory card or CPU flash fault (BACKUP)<br />1 LED (green/red) ETH MS (Ethernet port configuration status)<br />1 LED (green/red) Eth NS (Ethernet network status)<br />1 LED (Green) peer processor running (REMOTE RUN)<br />1 LED (Green) processor ID set to A (A)<br />1 LED (Green) processor ID set to B (B)<br />1 LED (Green) processor acting as Primary (PRIM)<br />1 LED (Green) processor acting as Standby (STBY)<br />1 LED (Green) I/O values overrided by user (FORCED IO)<br />1 LED (Green) Hot standby link status (Hsby Diag) |
| Net Weight | 1.872 lb(US) (0.849 kg) |
Specifications may be subject to change without notice
