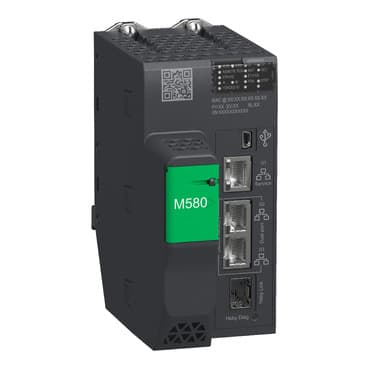

BMEH584040
Product ID:29483
Updated: 2026/4/3
Key Features
- 1Ensure high reliability with dual redundant processing capabilities. 2、Support extensive programs using 16MB of integrated RAM. 3、Expand data storage easily with 4GB of flash memory. 4、Connect up to 61 Ethernet devices and 16 remote I/O racks. 5、Deploy in harsh environments with IP20 rating and durability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M580 | Product or Component Type | Redundant processor module |
| Number of racks | 1 | Application specific I/O | HART<br />SSI encoder<br />Serial link<br />Motion control<br />Accurate time stamping<br />Counter |
| Checks | Process control | Control channels | Programmable loops |
| Integrated connection type | 1 Ethernet TCP/IP service port<br />2 Ethernet TCP/IP device network<br />USB type mini B<br />1 Ethernet HSBY port | Number of remote I/O station | 16 - 2 X80 and Quantum drops |
| Number of distributed equipment | 64 | Communication module processor capacity | 8 AS-Interface module<br />16 Ethernet communication module |
| Communication Service | RIO scanner<br />DIO scanner | Memory description | Expandable flash, 4 GB data storage<br />Integrated RAM, 10 kB system memory<br />Integrated RAM, 16 MB program<br />Integrated RAM, 2048 kB data |
| Application structure | 1 cyclic/periodic master task<br />1 periodic fast task | Cybersecurity | Achilles certified<br />DoS prevention<br />IPSec<br />SNMP logging<br />Syslog protocol support<br />Transport layer security<br />Audit trail<br />Embedded firewall<br />Firmware signature<br />Password protection<br />Port hardening<br />Secure communication (HTTPS)<br />Security log |
| Number of instructions per ms | 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic<br />40 Kinst/ms 100 % Boolean | Current consumption | 360 mA 24 V DC |
| MTBF reliability | 650000 H | marking | CE |
| Vibration resistance | 3 gn | Shock resistance | 30 gn |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| IP Degree of Protection | IP20 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
| Supply | Internal power supply via rack | Status LED | 1 LED (Green) processor running (RUN)<br />1 LED (Red) processor or system fault (ERR)<br />1 LED (Red) I/O module fault (I/O)<br />1 LED (Green) download in progress (DL)<br />1 LED (Red) memory card or CPU flash fault (BACKUP)<br />1 LED (green/red) ETH MS (Ethernet port configuration status)<br />1 LED (green/red) Eth NS (Ethernet network status)<br />1 LED (Green) peer processor running (REMOTE RUN)<br />1 LED (Green) processor ID set to A (A)<br />1 LED (Green) processor ID set to B (B)<br />1 LED (Green) processor acting as Primary (PRIM)<br />1 LED (Green) processor acting as Standby (STBY)<br />1 LED (Green) I/O values overrided by user (FORCED IO)<br />1 LED (Green) Hot standby link status (Hsby Diag) |
| Net Weight | 1.872 lb(US) (0.849 kg) |
