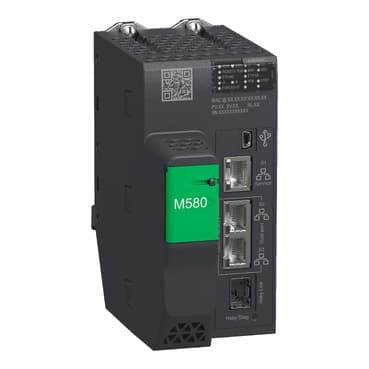

BMEH584040C
Product ID:29484
Updated: 2026/4/3
Key Features
- 1Ensure continuous operation during processor failure. 2、Support complex tasks with 16MB program memory. 3、Protect against cyber threats with robust security. 4、Integrate seamlessly with Modicon M580 systems. 5、Operate in harsh industrial environments reliably.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M580 | Product or Component Type | Redundant processor module |
| Impregnation material | Conformal coated | Number of racks | 1 |
| Application specific I/O | Accurate time stamping<br />HART<br />Counter<br />SSI encoder<br />Serial link<br />Motion control | Checks | Process control |
| Control channels | Programmable loops | Integrated connection type | 1 Ethernet TCP/IP service port<br />2 Ethernet TCP/IP device network<br />USB type mini B<br />1 Ethernet HSBY port |
| Number of remote I/O station | 16 - 2 X80 and Quantum drops | Number of distributed equipment | 64 |
| Communication module processor capacity | 8 AS-Interface module<br />16 Ethernet communication module | Communication Service | DIO scanner<br />RIO scanner |
| Memory description | Expandable flash, 4 GB data storage<br />Integrated RAM, 10 kB system memory<br />Integrated RAM, 16 MB program<br />Integrated RAM, 2048 kB data | Application structure | 1 periodic fast task<br />1 cyclic/periodic master task |
| Number of instructions per ms | 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic<br />40 Kinst/ms 100 % Boolean | Current consumption | 360 mA 24 V DC |
| MTBF reliability | 650000 H | marking | CE |
| Vibration resistance | 3 gn | Shock resistance | 30 gn |
| Ambient Air Temperature for Operation | -13…140 °F (-25…60 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor | Relative humidity | 5…95 % 131 °F (55 °C) without condensation |
| IP Degree of Protection | IP20 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive |
| Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22 | Standards | IEC 61131-2<br />IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />IEC 60079-0 |
| Environmental characteristic | Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2 | Protective treatment | Conformal coating |
| Supply | Internal power supply via rack | Status LED | 1 LED (Green) processor running (RUN)<br />1 LED (Red) processor or system fault (ERR)<br />1 LED (Red) I/O module fault (I/O)<br />1 LED (Green) download in progress (DL)<br />1 LED (Red) memory card or CPU flash fault (BACKUP)<br />1 LED (green/red) ETH MS (Ethernet port configuration status)<br />1 LED (green/red) Eth NS (Ethernet network status)<br />1 LED (Green) peer processor running (REMOTE RUN)<br />1 LED (Green) processor ID set to A (A)<br />1 LED (Green) processor ID set to B (B)<br />1 LED (Green) processor acting as Primary (PRIM)<br />1 LED (Green) processor acting as Standby (STBY)<br />1 LED (Green) I/O values overrided by user (FORCED IO)<br />1 LED (Green) Hot standby link status (Hsby Diag) |
| Net Weight | 1.872 lb(US) (0.849 kg) |
Specifications may be subject to change without notice
