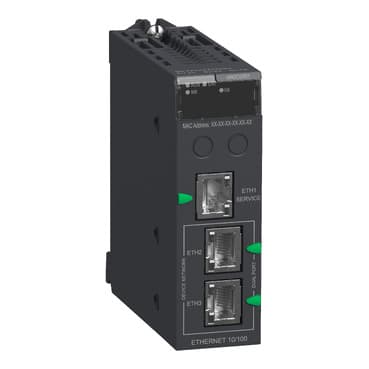

BMENOC0301
Product ID:29490
Updated: 2026/4/3
Key Features
- 1Deliver high-performance 10/100 Mbit/s Ethernet via 3 RJ45 connectors. 2、Access advanced services like bandwidth management and Modbus TCP scanning. 3、Enhance network flexibility with an embedded multiport switch and RSTP. 4、Ensure reliable operation with internal power supplied via the rack. 5、Integrate seamlessly with compatible BMEXBPxxx Ethernet racks.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M580 | Product or Component Type | Communication module |
| Device Application | Process and control communication module | Product compatibility | Modicon M580 standalone CPU (BMEP58…..)<br />Modicon M580 redundant CPU (BMEH58…..)<br />Modicon M580 safety CPU (non interfering type 1) (BMEP582…..)<br />Modicon M580 safety redundant CPU (non interfering type 1) (BMEH582…..)<br />Modicon X80 rack with Ethernet backplane (BMEXBP…..) |
| Mounting Location | Main rack | Backplane slot location | Ethernet + X-bus Slot |
| Slot occupied by module | 1 | Maximum number of modules per rack | 4 |
| Supply | Internal power supply via rack | Integrated connection type | 3 Ethernet RJ45 10/100 Mbit/s double shielded twisted pair |
| Transmission support medium | Ethernet backplane | Communication service | Bandwidth management<br />FDR server<br />SNMP network administrator<br />Modbus TCP I/O Scanner and Messaging<br />Ethernet/IP I/O Scanner and Messaging<br />RSTP support<br />Port mirroring<br />Embedded multiport switch |
| Web server | For commissioning, operational and maintenance | Current consumption | 900 mA 3.3 V DC for product version >= 13)<br />1800 mA 3.3 V DC for product version < 13) |
| Local signalling | for processor running (RUN) 1 LED (green)<br /> for processor or system fault (ERR) 1 LED (red)<br /> for ETH MS (Ethernet port configuration status) 1 LED (green/red)<br /> for Eth NS (Ethernet network status) 1 LED (green/red) | Width | 1.3 in (32 mm) |
| Height | 4.08 in (103.7 mm) | Length | 3.4 in (86 mm) |
| Net Weight | 0.4 lb(US) (0.2 kg) | IP Degree of Protection | IP20 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | marking | CE |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
Specifications may be subject to change without notice
