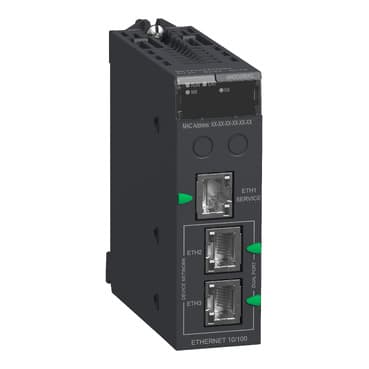

BMENOC0301C
Product ID:29491
Updated: 2026/7/14
Key Features
- 1Support three Ethernet ports with RJ45 connectors for robust connectivity.
- 2Offer high-speed data transmission at 10/100 Mbit/s.
- 3Integrate LEDs for processor, fault, and network status indication.
- 4Power internally via the rack for reliable operation.
- 5Comply with CE, UL, and EN industry safety standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M580 | Product or Component Type | Communication module |
| Product compatibility | BMEXBP... - Ethernet + X-bus rack | Maximum number of modules per rack | 4 |
| Supply | Internal power supply via rack | Integrated connection type | 3 Ethernet RJ45 10/100 Mbit/s double shielded twisted pair |
| Transmission support medium | Ethernet backplane | Communication service | Bandwidth management<br />FDR server<br />SNMP network administrator<br />Modbus TCP I/O Scanner and Messaging<br />Ethernet/IP I/O Scanner and Messaging<br />RSTP support<br />Port mirroring<br />Embedded multiport switch |
| Web server | Basic | Current consumption | 900 mA 3.3 V DC for product version >= 13)<br />1800 mA 3.3 V DC for product version < 13) |
| Local signalling | for processor running (RUN) 1 LED (green)<br /> for processor or system fault (ERR) 1 LED (red)<br /> for ETH MS (Ethernet port configuration status) 1 LED (green/red)<br /> for Eth NS (Ethernet network status) 1 LED (green/red) | Width | 1.3 in (32 mm) |
| Height | 4.08 in (103.7 mm) | Length | 3.4 in (86 mm) |
| Net Weight | 0.4 lb(US) (0.2 kg) | IP Degree of Protection | IP20 |
| Protective treatment | Conformal coating | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| marking | CE | Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22 |
| Standards | EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive |
| Environmental characteristic | Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2 |
Specifications may be subject to change without notice
