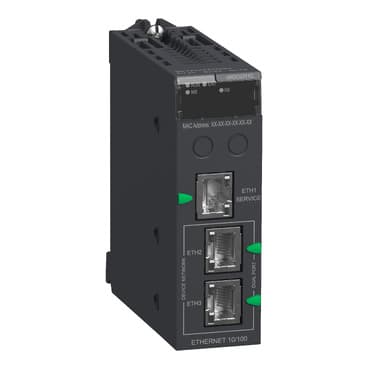

BMENOC0311C
Product ID:29493
Updated: 2026/7/14
Key Features
- 1Support 10/100 Mbps Ethernet communication via RJ45 terminals.
- 2Deliver high performance with an advanced web server for configuration.
- 3Ensure secure data with robust protocols and RSTP support.
- 4Integrate easily with a compact 0.44 lb design.
- 5Apply across water treatment, food and beverage, and life sciences.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M580 | Product or Component Type | Communication module |
| Product compatibility | BMEXBP... - Ethernet + X-bus rack | Supply | Internal power supply via rack |
| Integrated connection type | 3 Ethernet RJ45 10/100 Mbit/s double shielded twisted pair | Transmission support medium | Ethernet backplane |
| Communication service | Bandwidth management<br />FDR server<br />SNMP network administrator<br />Modbus TCP I/O Scanner and Messaging<br />Ethernet/IP I/O Scanner and Messaging<br />RSTP support<br />Port mirroring<br />Embedded multiport switch | Web services | FactoryCast configurable |
| Web server | Advanced | Current consumption | 900 mA 3.3 V DC for product version >= 13)<br />1800 mA 3.3 V DC for product version < 13) |
| Local signalling | for processor running (RUN) 1 LED (green)<br /> for processor or system fault (ERR) 1 LED (red)<br /> for ETH MS (Ethernet port configuration status) 1 LED (green/red)<br /> for Eth NS (Ethernet network status) 1 LED (green/red) | Net Weight | 0.4 lb(US) (0.2 kg) |
| IP Degree of Protection | IP20 | Protective treatment | Conformal coating |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | marking | CE |
| Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22 | Standards | EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0 |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive | Environmental characteristic | Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2 |
Specifications may be subject to change without notice
