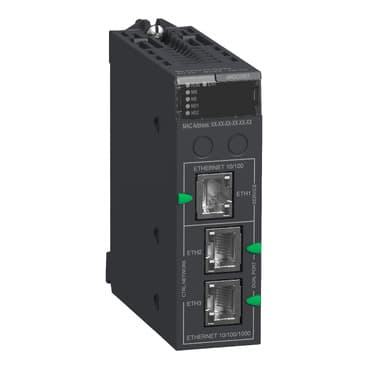

BMENOC0321
Product ID:29494
Updated: 2026/4/3
Key Features
- 1Provide direct Ethernet connection between control room and device subnetworks. 2、Define two distinct subnets for control and device networks ensuring seamless communication. 3、Manage Ethernet transparency between networks for efficient data transfer. 4、Support 10/100/1000 Mbps Ethernet speeds for fast data exchange. 5、Ensure secure communication with enhanced cyber-security measures for critical operations.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M580 | Product or Component Type | Communication module |
| Product compatibility | BMEXBP... - Ethernet + X-bus rack | Supply | Internal power supply via rack |
| Integrated connection type | 3 Ethernet RJ45 10/100/1000 Mbps double shielded twisted pair | Memory usage | Application saving<br />Activating the advanced web server |
| Transmission support medium | Ethernet backplane | Communication service | Bandwidth management<br />FDR server<br />Modbus TCP I/O Scanner and Messaging<br />Ethernet/IP I/O Scanner and Messaging<br />Embedded 4-port switch<br />RSTP support<br />IP forwarding |
| Web services | FactoryCast configurable | Web server | Advanced |
| Current consumption | 1800 mA 3.3 V DC | Local signalling | for processor running (RUN) 1 LED (green)<br /> for processor or system fault (ERR) 1 LED (red)<br /> for ETH MS (Ethernet port configuration status) 1 LED (green/red)<br /> for Eth NS (Ethernet network status) 1 LED (green/red)<br /> for Eth NS1 (Ethernet network status) 1 LED (green/red)<br /> for Eth NS2 (Ethernet network status) 1 LED (green/red) |
| Net Weight | 0.4 lb(US) (0.2 kg) | IP Degree of Protection | IP20 |
| Protective treatment | TC | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| marking | CE | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility |
Specifications may be subject to change without notice
