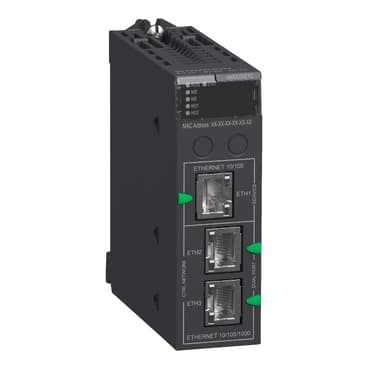

BMENOC0321C
Product ID:29495
Updated: 2026/7/14
Key Features
- 1Support high-performance communication for the Modicon M580 series with 3-subnet Ethernet.
- 2Enable IP forwarding and bandwidth management for efficient network operations.
- 3Enhance durability in harsh environments with protective conformal coating.
- 4Access advanced web services including FactoryCast for remote configuration.
- 5Ensure compliance with major certifications like CE, UL, CSA, and ATEX.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M580 | Product or Component Type | Communication module |
| Product compatibility | BMEXBP... - Ethernet + X-bus rack | Supply | Internal power supply via rack |
| Integrated connection type | 3 Ethernet RJ45 10/100/1000 Mbps double shielded twisted pair | Memory usage | Application saving<br />Activating the advanced web server |
| Transmission support medium | Ethernet backplane | Communication service | Bandwidth management<br />FDR server<br />Modbus TCP I/O Scanner and Messaging<br />Ethernet/IP I/O Scanner and Messaging<br />RSTP support<br />IP forwarding<br />Email |
| Web services | FactoryCast configurable | Web server | Advanced |
| Current consumption | 1800 mA 3.3 V DC | Local signalling | for processor running (RUN) 1 LED (green)<br /> for processor or system fault (ERR) 1 LED (red)<br /> for ETH MS (Ethernet port configuration status) 1 LED (green/red)<br /> for Eth NS (Ethernet network status) 1 LED (green/red)<br /> for Eth NS1 (Ethernet network status) 1 LED (green/red)<br /> for Eth NS2 (Ethernet network status) 1 LED (green/red) |
| Net Weight | 0.4 lb(US) (0.2 kg) | IP Degree of Protection | IP20 |
| Protective treatment | Conformal coating | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| marking | CE | Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22 |
| Standards | EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0 | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive |
| Environmental characteristic | Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2 |
Specifications may be subject to change without notice
