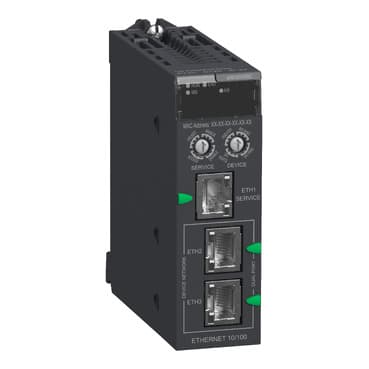

BMENOS0300C
Product ID:29500
Updated: 2026/7/14
Key Features
- 1Withstand harsh environments using a conformal coating.
- 2Connect via 1 service and 2 device EtherNet/IP ports.
- 3Monitor status with 4 distinct LED indicators.
- 4Meet global standards including CE, UL, and ATEX Zone 2/22.
- 5Operate reliably from 0°C to 60°C and up to 2000m.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon X80 | Product or Component Type | Switch module |
| Product Compatibility | BMEXBP... backplane | [Us] rated supply voltage | 24 V back plane |
| Power consumption in W | 3.3 W 135 mA 25 °C<br />4.5 W 185 mA 60 °C | Number of port | 3 |
| Integrated connection type | Ethernet/IP device network<br />Ethernet/IP service port | communication port protocol | EtherNet/IP |
| Local signalling | for module active (RUN) 1 LED (green)<br /> for module error (ERR) 1 LED (red)<br /> for module status (Mod Status) 1 LED (green/red)<br /> for network communication status (Net Status) 1 LED (green/red) | Module format | Standard |
| marking | CE | Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility<br />2014/34/EU - ATEX directive |
| Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22 | Standards | EN/IEC 61131-2<br />EN/IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />EN/IEC 60079-0 |
| Environmental characteristic | Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3<br />Hazardous location class I division 2 | IP Degree of Protection | IP20 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Operating altitude | <= 6561.68 ft (2000 m) | Maximum altitude transport | 9842.5 ft (3000 m) |
| Overvoltage category | II | Relative Humidity | 95 % without condensation |
| Protective treatment | Conformal coating |
Specifications may be subject to change without notice
