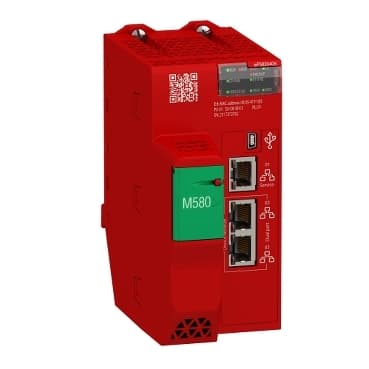

BMEP582040S
Product ID:29509
Updated: 2026/4/3
Key Features
- 1Integrate seamlessly using Ethernet and USB communication ports. 2、Support up to 10240 I/O channels for extensive automation. 3、Operate reliably from -25 to 60°C temperature range. 4、Meet stringent safety standards including EN/IEC 61131-2. 5、Ensure eco-friendly performance with Green Premium certification.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M580 | Product or Component Type | Processor module |
| Impregnation material | Conformal coated | Number of racks | 4 |
| Local I/O processor capacity (discrete) | 2048 I/O | Local I/O processor capacity (analog) | 512 I/O |
| Number of application specific channel (local rack) | 72 | Application specific I/O | Counter<br />Motion control<br />SSI encoder<br />Accurate time stamping<br />Serial link<br />HART |
| Checks | Process control<br />Safety control | Control channels | Programmable loops |
| Integrated connection type | 1 Ethernet TCP/IP service port<br />2 Ethernet TCP/IP device network<br />USB type mini B | Number of remote I/O station | 8 - 2 remote drop |
| Number of distributed equipment | 64 | Number of CIP safety IO devices | 16 |
| Communication module processor capacity | 2 Ethernet communication module<br />16 AS-Interface module | Communication Service | DIO scanner<br />RIO scanner |
| Memory description | Expandable flash, 4 GB data storage<br />Integrated RAM, 10 kB system memory<br />Integrated RAM, 8 MB program process<br />Integrated RAM, 768 kB data process<br />Integrated RAM, 2 MB program safety<br />Integrated RAM, 512 KB data safety | Application structure | 128 event tasks<br />2 auxiliary tasks<br />1 cyclic/periodic master task<br />1 periodic fast task<br />1 periodic safe task |
| Cybersecurity | Achilles certified<br />DoS prevention<br />IPSec<br />SNMP logging<br />Syslog protocol support<br />Audit trail<br />Embedded firewall<br />Firmware signature<br />Password protection<br />Port hardening<br />Security log | Number of instructions per ms | 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic<br />40 Kinst/ms 100 % Boolean |
| Current consumption | 295 mA 24 V DC | MTBF reliability | 775000 H |
| marking | CE | Vibration resistance | 3 gn |
| Shock resistance | 15 gn | Ambient Air Temperature for Operation | -13…140 °F (-25…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation | IP Degree of Protection | IP20 |
| Directives | 2014/30/EU - electromagnetic compatibility<br />2006/42/EC - machinery<br />2014/34/EU - ATEX directive | Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy<br />ATEX zone 2/22<br />IECEx zone 2/22<br />TÜV |
| Standards | IEC 61131-2<br />IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G<br />IEC 60079-0 | Environmental characteristic | Hazardous location class I division 2<br />Gas resistant class Gx ISA S71.04<br />Gas resistant class 3C4 IEC 60721-3-3<br />Dust resistant class 3S4 IEC 60721-3-3<br />Sand resistant class 3S4 IEC 60721-3-3<br />Salt resistant level 2 IEC 68252<br />Mold growth resistant class 3B2 IEC 60721-3-3<br />Fungal spore resistant class 3B2 IEC 60721-3-3 |
| Protective treatment | Conformal coating | Safety level | SIL 3 IEC 61508<br />SIL 3 IEC 61511<br />SILCL 3 IEC 62061<br />SILCL 3 ISO 13849-1 category 4<br />SIL 4 EN 50126<br />SIL 4 EN 50128<br />SIL 4 EN 50129 |
| Supply | Internal power supply via rack | Status LED | 1 LED (Green) processor running (RUN)<br />1 LED (Red) processor or system fault (ERR)<br />1 LED (Red) I/O module fault (I/O)<br />1 LED (Green) download in progress (DL)<br />1 LED (Red) memory card or CPU flash fault (BACKUP)<br />1 LED (green/red) ETH MS (Ethernet port configuration status)<br />1 LED (green/red) Eth NS (Ethernet network status)<br />1 LED (Green) processor in safety mode (SRUN)<br />1 LED (Green) processor in maintenance mode (SMOD)<br />1 LED (Red) I/O values overrided by user (FORCED IO) |
| Net Weight | 1.872 lb(US) (0.849 kg) |
Specifications may be subject to change without notice
