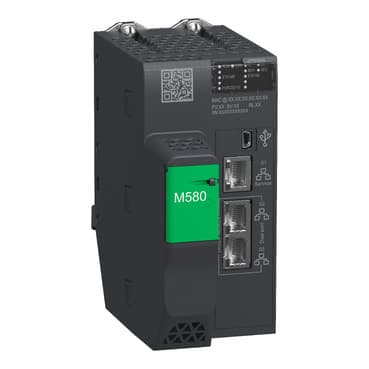

BMEP584040
Product ID:29513
Updated: 2026/7/14
Key Features
- 1Support up to 4096 I/O channels for extensive automation needs.
- 2Equip with robust Ethernet connectivity including service and device ports.
- 3Feature advanced memory with 4 GB data storage and 16 MB program.
- 4Integrate seamlessly via USB Type Mini B and EtherNet TCP/IP ports.
- 5Operate reliably within a 0 to 60°C temperature range with IP20 protection.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M580 | Product or Component Type | Processor module |
| Number of racks | 8 | Local I/O processor capacity (discrete) | 4096 I/O |
| Local I/O processor capacity (analog) | 1024 I/O | Number of application specific channel (local rack) | 144 |
| Application specific I/O | Counter<br />SSI encoder<br />Motion control<br />Accurate time stamping<br />HART<br />Serial link | Checks | Process control |
| Control channels | Programmable loops | Integrated connection type | 1 Ethernet TCP/IP service port<br />2 Ethernet TCP/IP device network<br />USB type mini B |
| Number of remote I/O station | 16 - 2 remote drop | Number of distributed equipment | 64 |
| Communication module processor capacity | 16 AS-Interface module<br />4 Ethernet communication module | Communication Service | RIO scanner<br />DIO scanner |
| Memory description | Expandable flash, 4 GB data storage<br />Integrated RAM, 10 kB system memory<br />Integrated RAM, 16 MB program<br />Integrated RAM, 2048 kB data | Application structure | 2 auxiliary tasks<br />1 cyclic/periodic master task<br />1 periodic fast task<br />128 event tasks |
| Cybersecurity | Achilles certified<br />DoS prevention<br />IPSec<br />SNMP logging<br />Syslog protocol support<br />Transport layer security<br />Audit trail<br />Embedded firewall<br />Firmware signature<br />Password protection<br />Port hardening<br />Secure communication (HTTPS)<br />Security log | Number of instructions per ms | 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic<br />40 Kinst/ms 100 % Boolean |
| Current consumption | 295 mA 24 V DC | MTBF reliability | 775000 H |
| marking | CE | Vibration resistance | 3 gn |
| Shock resistance | 30 gn | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation | IP Degree of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy |
| Standards | IEC 61131-2<br />IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G | Environmental characteristic | Hazardous location class I division 2 |
| Supply | Internal power supply via rack | Status LED | 1 LED (Green) processor running (RUN)<br />1 LED (Red) processor or system fault (ERR)<br />1 LED (Red) I/O module fault (I/O)<br />1 LED (Green) download in progress (DL)<br />1 LED (Red) memory card or CPU flash fault (BACKUP)<br />1 LED (green/red) ETH MS (Ethernet port configuration status)<br />1 LED (green/red) Eth NS (Ethernet network status) |
| Net Weight | 1.872 lb(US) (0.849 kg) |
Specifications may be subject to change without notice
