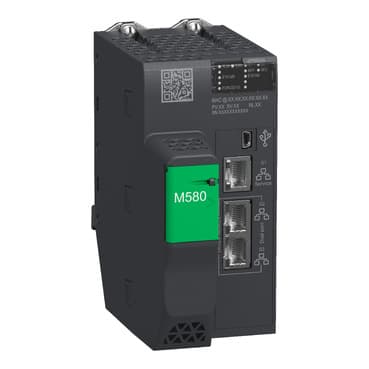

BMEP585040
Product ID:29515
Updated: 2026/4/3
Key Features
- 1Boost performance with 24MB RAM for efficient program execution. 2、Enhance cybersecurity with advanced features to manage operational risk. 3、Ensure compatibility with Modicon M580 for process control solutions. 4、Expand connectivity supporting 61 Ethernet devices and 31 remote I/O racks. 5、Meet IP20 rating and comply with key environmental and EMC directives.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M580 | Product or Component Type | Processor module |
| Number of racks | 8 | Local I/O processor capacity (discrete) | 5120 I/O |
| Local I/O processor capacity (analog) | 1280 I/O | Number of application specific channel (local rack) | 180 |
| Application specific I/O | Counter<br />SSI encoder<br />Motion control<br />Serial link<br />HART<br />Accurate time stamping | Checks | Process control |
| Control channels | Programmable loops | Integrated connection type | 1 Ethernet TCP/IP service port<br />2 Ethernet TCP/IP device network<br />USB type mini B |
| Number of remote I/O station | 31 - 2 remote drop | Number of distributed equipment | 64 |
| Communication module processor capacity | 16 AS-Interface module<br />6 Ethernet communication module | Communication Service | DIO scanner<br />RIO scanner |
| Memory description | Expandable flash, 4 GB data storage<br />Integrated RAM, 10 kB system memory<br />Integrated RAM, 24 MB program<br />Integrated RAM, 4096 kB data | Application structure | 1 periodic fast task<br />128 event tasks<br />1 cyclic/periodic master task<br />2 auxiliary tasks |
| Cybersecurity | Achilles certified<br />DoS prevention<br />IPSec<br />SNMP logging<br />Syslog protocol support<br />Transport layer security<br />Audit trail<br />Embedded firewall<br />Firmware signature<br />Password protection<br />Port hardening<br />Secure communication (HTTPS)<br />Security log | Number of instructions per ms | 40 Kinst/ms 65 % Boolean + 35 % fixed arithmetic<br />50 Kinst/ms 100 % Boolean |
| Current consumption | 300 mA 24 V DC | MTBF reliability | 775000 H |
| marking | CE | Vibration resistance | 3 gn |
| Shock resistance | 30 gn | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Operating altitude | 0...6561.68 ft (0...2000 m)<br />2000...5000 m with derating factor |
| Relative humidity | 5…95 % 131 °F (55 °C) without condensation | IP Degree of Protection | IP20 |
| Directives | 2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility | Product certifications | CE<br />UL<br />CSA<br />RCM<br />EAC<br />Merchant Navy |
| Standards | IEC 61131-2<br />IEC 61010-2-201<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201<br />IACS E10<br />EN/IEC 61000-6-5, interface type 1 and type 2<br />EN/IEC 61850-3, location G | Environmental characteristic | Hazardous location class I division 2 |
| Supply | Internal power supply via rack | Status LED | 1 LED (Green) processor running (RUN)<br />1 LED (Red) processor or system fault (ERR)<br />1 LED (Red) I/O module fault (I/O)<br />1 LED (Green) download in progress (DL)<br />1 LED (Red) memory card or CPU flash fault (BACKUP)<br />1 LED (green/red) ETH MS (Ethernet port configuration status)<br />1 LED (green/red) Eth NS (Ethernet network status)<br />1 LED (Green) I/O values overrided by user (FORCED IO) |
| Net Weight | 1.872 lb(US) (0.849 kg) |
Specifications may be subject to change without notice
